PJ-017C

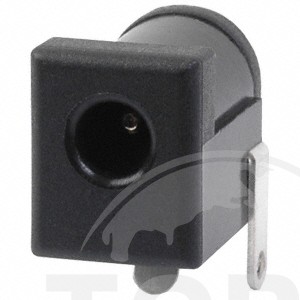

Image is for reference, please contact us to get the real picture

Manufacturer Part
PJ-017C
Manufacturer
CUI Devices
Description
CONN PWR JACK 1X3.4MM KINKED PIN
Category
Connectors, Interconnects
Family
Barrel - Power Connectors
Series
-
In Stock
0
Datasheets
-

PJ-017C Specifications

  • Series:-
  • Package:Bag
  • Part Status:Active
  • Connector Type:Jack
  • Gender:Male
  • Industry Recognized Mating Diameter:1.00mm ID (0.039"), 3.40mm OD (0.134")
  • Actual Diameter:0.039" (1.00mm ID), 0.150" (3.80mm OD)
  • Number of Positions/Contacts:2 Conductors, 3 Contacts
  • Internal Switch(s):Single Switch, Normally Closed
  • Mounting Type:Through Hole, Right Angle
  • Mounting Feature:-
  • Termination:Kinked Pin
  • Shielding:Unshielded
  • Features:-
  • Insulation Color:-
  • Voltage - Rated:24VDC
  • Current Rating (Amps):2 A
  • Mating Length/Depth:0.360" (9.15mm)
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
