JL04V-2A28-11SE-R

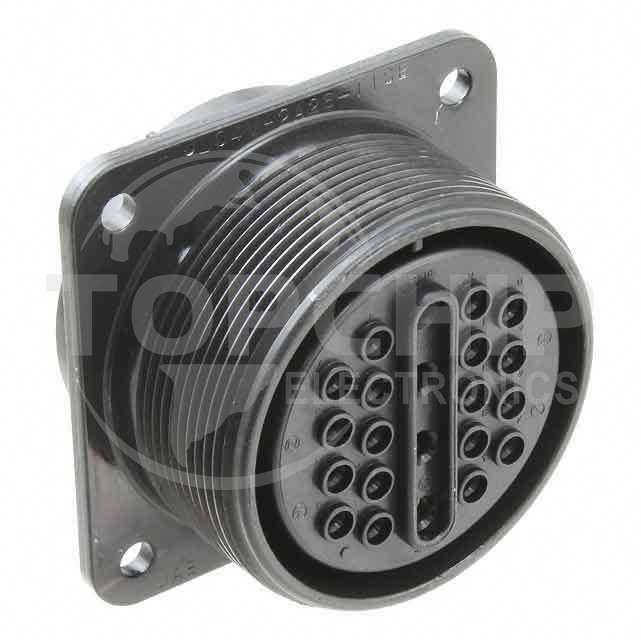

Image is for reference, please contact us to get the real picture

Manufacturer Part
JL04V-2A28-11SE-R
Manufacturer
JAE Electronics
Description
CONN RCPT FMALE 22P SOLDER CUP
Category
Connectors, Interconnects
Family
Circular Connectors
Series
-
In Stock
0
Datasheets
-

JL04V-2A28-11SE-R Specifications

  • Series:JL04V
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Receptacle, Female Sockets
  • Number of Positions:22 (21 + PE)
  • Shell Size - Insert:28-11
  • Shell Size, MIL:-
  • Mounting Type:Panel Mount
  • Mounting Feature:Flange
  • Termination:Solder Cup
  • Fastening Type:Threaded
  • Orientation:N (Normal)
  • Shell Material:Aluminum Alloy
  • Shell Finish:Zinc
  • Contact Finish - Mating:Silver
  • Color:Black
  • Ingress Protection:-
  • Material Flammability Rating:-
  • Features:Ground
  • Shielding:-
  • Current Rating (Amps):13A, 23A
  • Voltage Rating:100VAC, 250VAC
  • Cable Opening:-
  • Operating Temperature:-55°C ~ 125°C
