13-000101

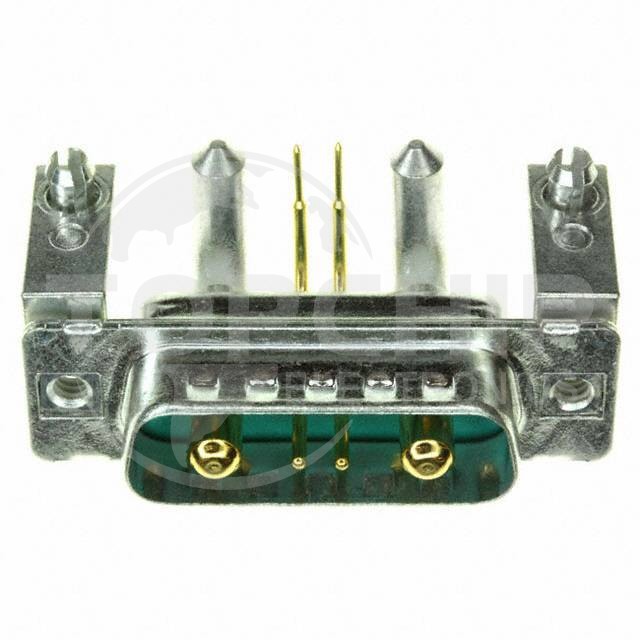

Image is for reference, please contact us to get the real picture

Manufacturer Part
13-000101
Manufacturer
CONEC
Description
CONN D-SUB PLUG 7POS R/A SLDR
Category
Connectors, Interconnects
Family
D-Sub Connectors
Series
-
In Stock
0
Datasheets
-

13-000101 Specifications

  • Series:MicroTCA™
  • Package:Tray
  • Part Status:Active
  • Connector Style:D-Sub, Combo
  • Connector Type:Plug, Male Pins
  • Number of Positions:7 (5 + 2 Power)
  • Number of Rows:2
  • Mounting Type:Board Edge, Through Hole, Right Angle
  • Shell Size, Connector Layout:2 (DA, A) - 7W2
  • Contact Type:Signal and Power
  • Flange Feature:Housing/Shell (4-40)
  • Termination:Solder
  • Shell Material, Finish:Steel, Tin Plated
  • Contact Finish:Gold
  • Contact Finish Thickness:30.0µin (0.76µm)
  • Ingress Protection:IP20
  • Material Flammability Rating:UL94 V-0
  • Current Rating (Amps):7.5A, 40A
  • Backset Spacing:0.458" (11.63mm)
  • Features:Board Lock, Grounding Indents, Mounting Brackets
