9-1393480-9

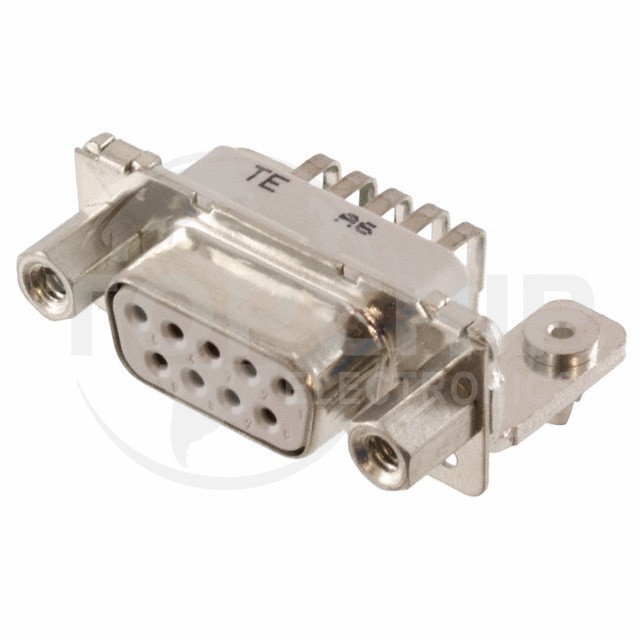

Image is for reference, please contact us to get the real picture

Manufacturer Part
9-1393480-9
Manufacturer
TE Connectivity AMP Connectors
Description
CONN D-SUB RCPT 9POS R/A SLDR
Category
Connectors, Interconnects
Family
D-Sub Connectors
Series
-
In Stock
0
Datasheets
-

9-1393480-9 Specifications

  • Series:AMPLIMITE HD-20
  • Package:Bulk
  • Part Status:Active
  • Connector Style:D-Sub
  • Connector Type:Receptacle, Female Sockets
  • Number of Positions:9
  • Number of Rows:2
  • Mounting Type:Through Hole, Right Angle
  • Shell Size, Connector Layout:1 (DE, E)
  • Contact Type:Signal
  • Flange Feature:Mating Side, Female Screwlock (4-40)
  • Termination:Solder
  • Shell Material, Finish:Steel, Tin Plated
  • Contact Finish:Gold
  • Contact Finish Thickness:30.0µin (0.76µm)
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Current Rating (Amps):2.2A
  • Backset Spacing:0.371" (9.43mm)
  • Features:Board Lock
