7936-09MFB1A

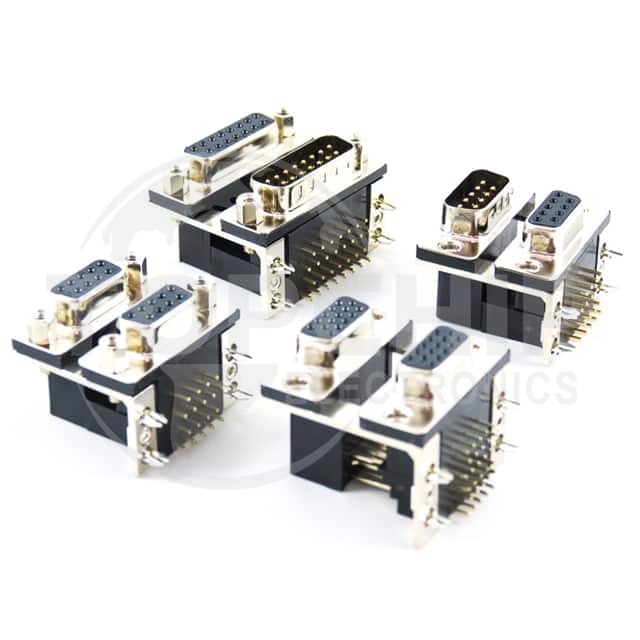

Image is for reference, please contact us to get the real picture

Manufacturer Part
7936-09MFB1A
Manufacturer
Oupiin
Description
D-SUB DOUBLE PORT RIGHT ANGLE, 9
Category
Connectors, Interconnects
Family
D-Sub Connectors
Series
-
In Stock
0
Datasheets
-

7936-09MFB1A Specifications

  • Series:7936
  • Package:Tray
  • Part Status:Active
  • Connector Style:D-Sub - Stacked
  • Connector Type:Plug, Male Pins; Receptacle, Female Sockets
  • Number of Positions:9, 9
  • Number of Rows:2, 2
  • Mounting Type:Through Hole, Right Angle
  • Shell Size, Connector Layout:1 (DE, E); 1 (DE, E)
  • Contact Type:Signal
  • Flange Feature:Housing/Shell (4-40)
  • Termination:Solder
  • Shell Material, Finish:Metal, Nickel Plated
  • Contact Finish:Gold
  • Contact Finish Thickness:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Current Rating (Amps):1A
  • Backset Spacing:0.318" (8.08mm)
  • Features:Board Lock, Grounding Indents
