STM32H757AII6 Specifications

• Series:STM32H7
• Package:Tray
• Part Status:Active
• Core Processor:ARM® Cortex®-M4, Cortex®-M7
• Core Size:32-Bit Dual-Core
• Speed:240MHz, 480MHz
• Connectivity:CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG
• Peripherals:Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT
• Number of I/O:112
• Program Memory Size:2MB (2M x 8)
• Program Memory Type:FLASH
• EEPROM Size:-
• RAM Size:1M x 8
• Voltage - Supply (Vcc/Vdd):1.62V ~ 3.6V
• Data Converters:A/D 28x16b; D/A 2x12b
• Oscillator Type:Internal
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

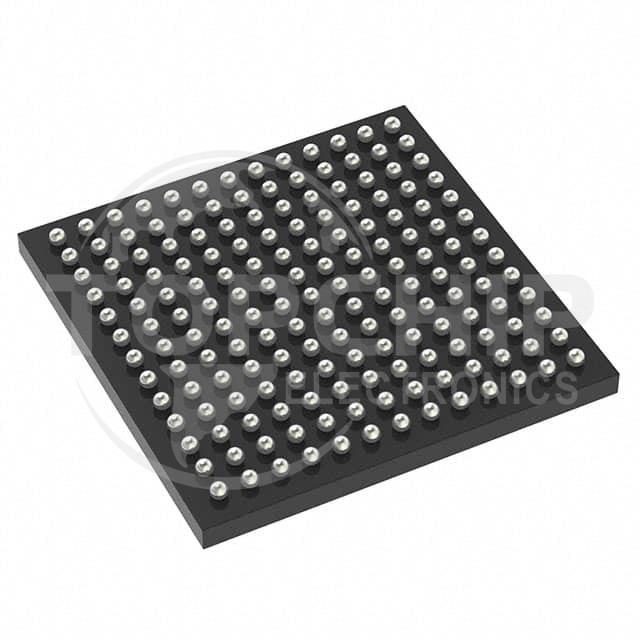

• Package / Case:169-UFBGA
• Supplier Device Package:169-UFBGA (7x7)
