TCR5AM08,LF Specifications

• Series:TCR5AM
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Output Configuration:Positive
• Output Type:Fixed
• Number of Regulators:1
• Voltage - Input (Max):5.5V
• Voltage - Output (Min/Fixed):0.8V
• Voltage - Output (Max):-
• Voltage Dropout (Max):0.22V @ 500mA
• Current - Output:500mA
• Current - Quiescent (Iq):55 µA
• Current - Supply (Max):68 µA
• PSRR:70dB ~ 40dB (1kHz ~ 10Hz)
• Control Features:Enable
• Protection Features:Over Current, Over Temperature, Under Voltage Lockout (UVLO)
• Operating Temperature:-40°C ~ 85°C (TJ)
• Mounting Type:Surface Mount

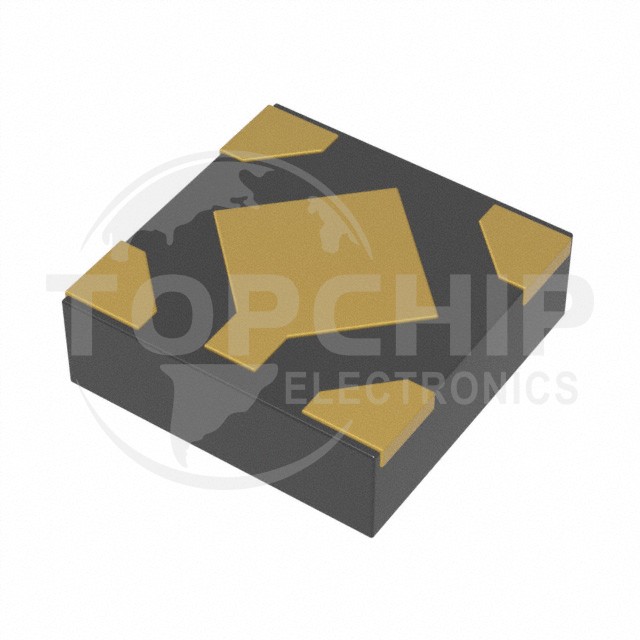

• Package / Case:4-XDFN Exposed Pad
• Supplier Device Package:5-DFNB (1.2x1.2)
