SC560BULTRT Specifications

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Active
• Output Configuration:Positive
• Output Type:Adjustable
• Number of Regulators:2
• Voltage - Input (Max):5.5V
• Voltage - Output (Min/Fixed):1.2V
• Voltage - Output (Max):5V
• Voltage Dropout (Max):0.1V @ 200mA (Typ), 0.1V @ 200mA (Typ)
• Current - Output:300mA, 300mA
• Current - Quiescent (Iq):100 µA
• Current - Supply (Max):-
• PSRR:65dB ~ 40dB (1kHz)
• Control Features:Enable
• Protection Features:Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
• Operating Temperature:-40°C ~ 85°C
• Mounting Type:Surface Mount

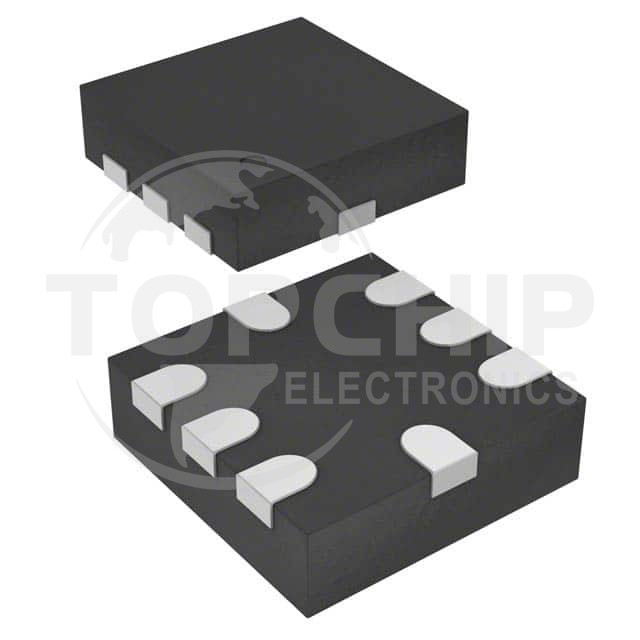

• Package / Case:8-UFQFN
• Supplier Device Package:8-MLPQ-UT (1.5x1.5)
