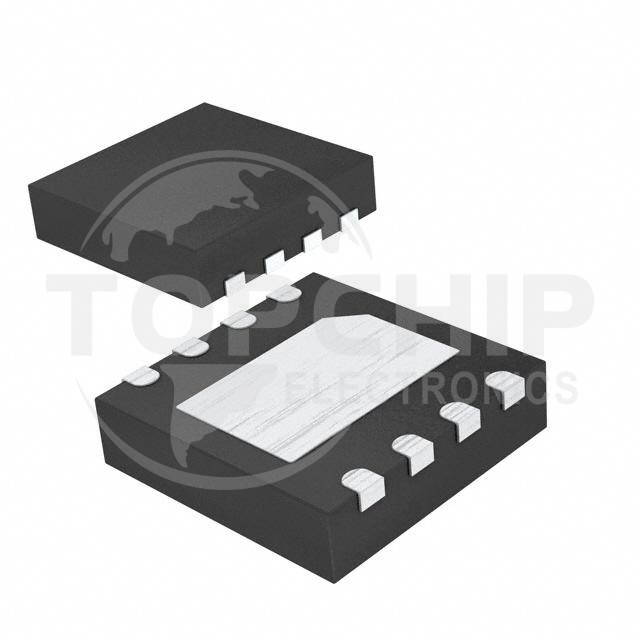

MAX8902BATA/V+T Specifications

• Series:Automotive, AEC-Q100
• Package:Tape & Reel (TR)
• Part Status:Active
• Output Configuration:Positive
• Output Type:Adjustable
• Number of Regulators:1
• Voltage - Input (Max):5.5V
• Voltage - Output (Min/Fixed):0.6V
• Voltage - Output (Max):5.3V
• Voltage Dropout (Max):0.12V @ 500mA
• Current - Output:500mA
• Current - Quiescent (Iq):120 µA
• Current - Supply (Max):160 µA
• PSRR:92dB ~ 62dB (5kHz ~ 100kHz)
• Control Features:Enable, Power Good
• Protection Features:Over Temperature, Reverse Polarity, Short Circuit, Soft Start
• Operating Temperature:-40°C ~ 125°C
• Mounting Type:Surface Mount
• Package / Case:8-WFDFN Exposed Pad
• Supplier Device Package:8-TDFN-EP (2x2)
