BTS70121EPAXUMA1 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Type:General Purpose
• Number of Outputs:1
• Ratio - Input:Output:1:1
• Output Configuration:High Side
• Output Type:N-Channel
• Interface:On/Off
• Voltage - Load:3.1V ~ 28V
• Voltage - Supply (Vcc/Vdd):Not Required
• Current - Output (Max):8.5A
• Rds On (Typ):11.5mOhm
• Input Type:Non-Inverting
• Features:Slew Rate Controlled
• Fault Protection:Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO
• Operating Temperature:-40°C ~ 150°C (TJ)
• Mounting Type:-

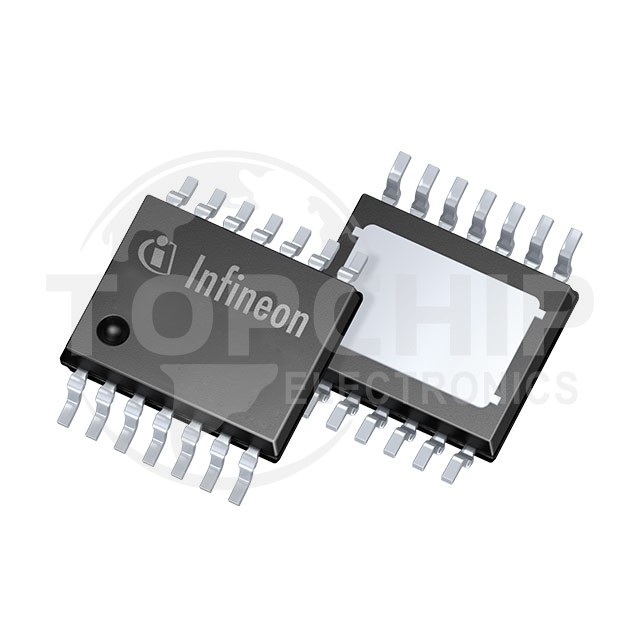

• Supplier Device Package:PG-TSDSO-14-22
• Package / Case:14-TSSOP (0.154", 3.90mm Width) Exposed Pad
