NLVAST4599DTT1G Specifications

• Series:Automotive, AEC-Q100
• Package:Tape & Reel (TR)
• Part Status:Active
• Switch Circuit:SPDT
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:1
• On-State Resistance (Max):25Ohm
• Channel-to-Channel Matching (ΔRon):20Ohm
• Voltage - Supply, Single (V+):2V ~ 5.5V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):14ns, 8ns
• -3db Bandwidth:200MHz
• Charge Injection:3pC
• Channel Capacitance (CS(off), CD(off)):10pF
• Current - Leakage (IS(off)) (Max):1nA
• Crosstalk:-
• Operating Temperature:-55°C ~ 125°C (TA)
• Mounting Type:Surface Mount

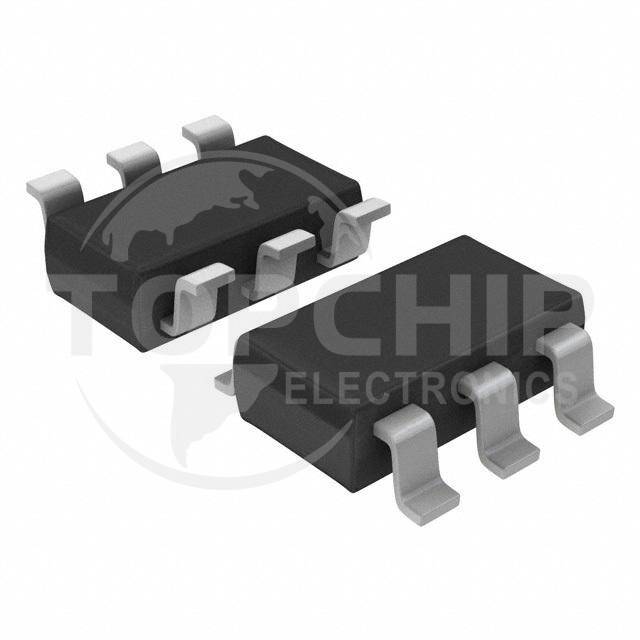

• Package / Case:SOT-23-6 Thin, TSOT-23-6
• Supplier Device Package:6-TSOP
