ADG1609BCPZ-REEL7 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SP4T
• Multiplexer/Demultiplexer Circuit:4:1
• Number of Circuits:2
• On-State Resistance (Max):4.5Ohm
• Channel-to-Channel Matching (ΔRon):120mOhm
• Voltage - Supply, Single (V+):3.3V ~ 16V
• Voltage - Supply, Dual (V±):±3.3V ~ 8V
• Switch Time (Ton, Toff) (Max):94ns, 93ns
• -3db Bandwidth:78MHz
• Charge Injection:29pC
• Channel Capacitance (CS(off), CD(off)):19pF, 59pF
• Current - Leakage (IS(off)) (Max):100pA
• Crosstalk:-64dB @ 1MHz
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount

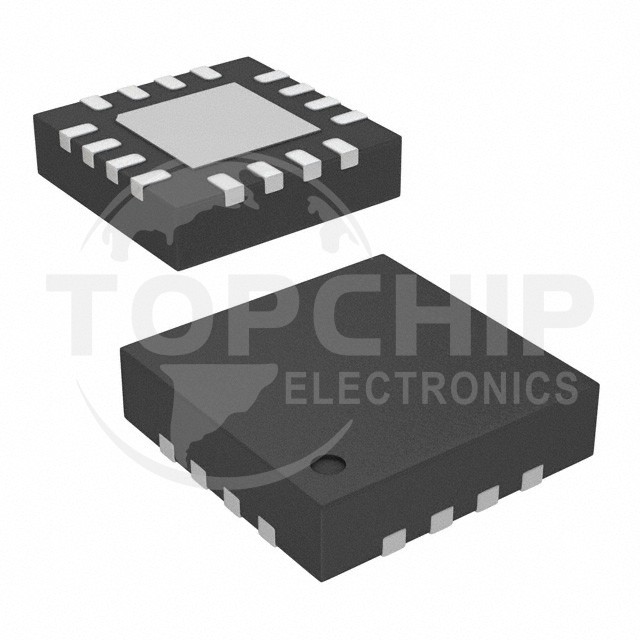

• Package / Case:16-WFQFN Exposed Pad, CSP
• Supplier Device Package:16-LFCSP-WQ (3x3)
