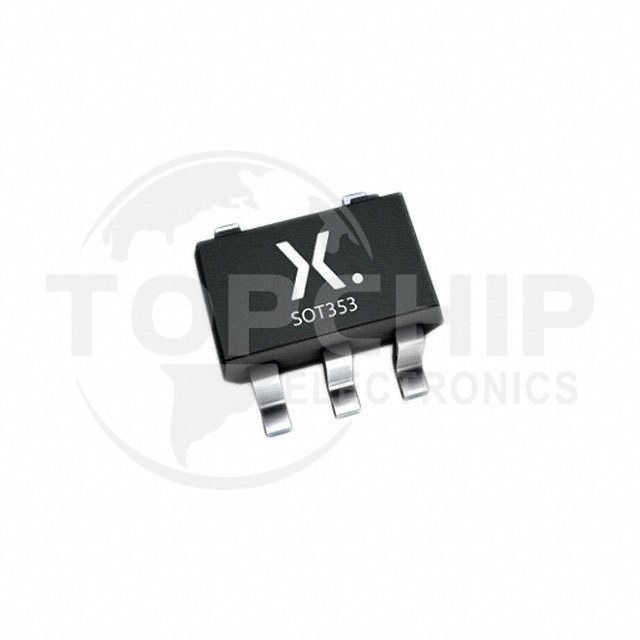

74AHCT1G66GW-Q100H Specifications

• Series:Automotive, AEC-Q100
• Package:Tape & Reel (TR)
• Part Status:Active
• Switch Circuit:SPST - NO
• Multiplexer/Demultiplexer Circuit:1:1
• Number of Circuits:1
• On-State Resistance (Max):22Ohm
• Channel-to-Channel Matching (ΔRon):-
• Voltage - Supply, Single (V+):4.5V ~ 5.5V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):11ns, 11ns
• -3db Bandwidth:280MHz
• Charge Injection:-
• Channel Capacitance (CS(off), CD(off)):10pF
• Current - Leakage (IS(off)) (Max):100nA
• Crosstalk:-
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount
• Package / Case:5-TSSOP, SC-70-5, SOT-353
• Supplier Device Package:5-TSSOP
