ADG5404BRUZ-REEL7 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:-
• Multiplexer/Demultiplexer Circuit:4:1
• Number of Circuits:1
• On-State Resistance (Max):10Ohm
• Channel-to-Channel Matching (ΔRon):350mOhm
• Voltage - Supply, Single (V+):9V ~ 40V
• Voltage - Supply, Dual (V±):±9V ~ 22V
• Switch Time (Ton, Toff) (Max):185ns, 142ns
• -3db Bandwidth:54MHz
• Charge Injection:290pC
• Channel Capacitance (CS(off), CD(off)):18pF, 88pF
• Current - Leakage (IS(off)) (Max):250pA
• Crosstalk:-58dB @ 1MHz
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount

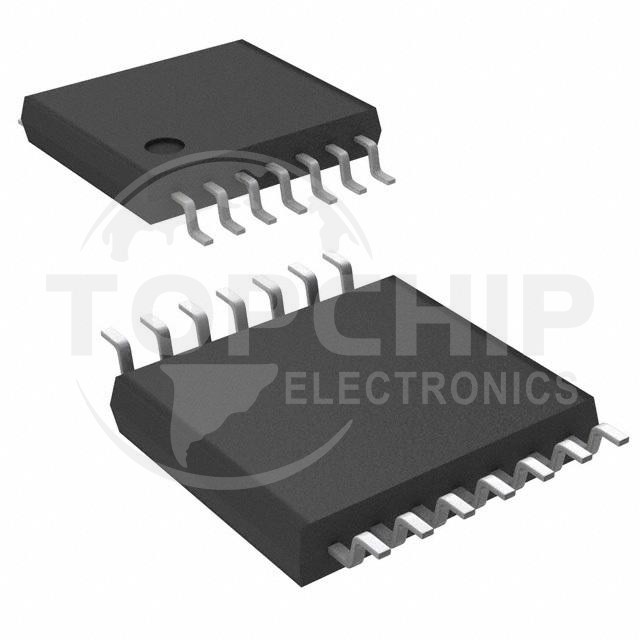

• Package / Case:14-TSSOP (0.173", 4.40mm Width)
• Supplier Device Package:14-TSSOP
