ADGS1212BCPZ-RL7 Specifications

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Active
• Switch Circuit:SPST - NO
• Multiplexer/Demultiplexer Circuit:1:1
• Number of Circuits:4
• On-State Resistance (Max):260Ohm, 625Ohm
• Channel-to-Channel Matching (ΔRon):11Ohm, 27Ohm
• Voltage - Supply, Single (V+):5V ~ 16.5V
• Voltage - Supply, Dual (V±):±4.5V ~ 16.5V
• Switch Time (Ton, Toff) (Max):490ns, 225ns
• -3db Bandwidth:1GHz
• Charge Injection:1pC
• Channel Capacitance (CS(off), CD(off)):1.4pF, 1.5pF
• Current - Leakage (IS(off)) (Max):1nA
• Crosstalk:-110dB @ 1MHz
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount

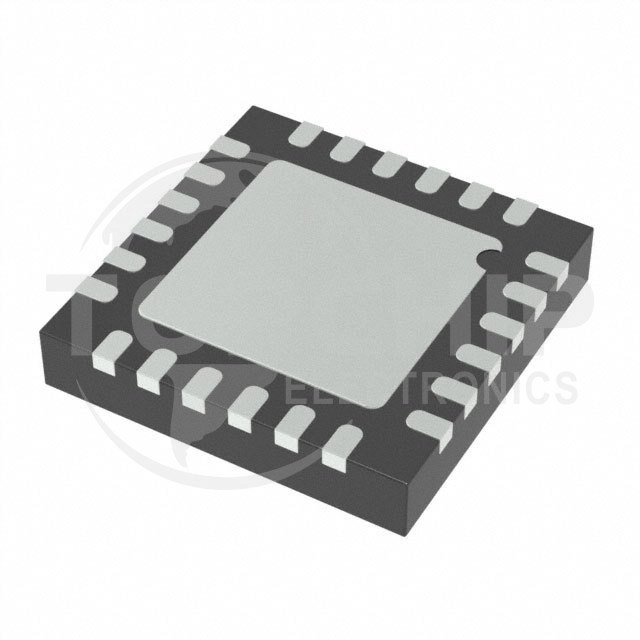

• Package / Case:24-WFQFN Exposed Pad, CSP
• Supplier Device Package:24-LFCSP-WQ (4x4)
