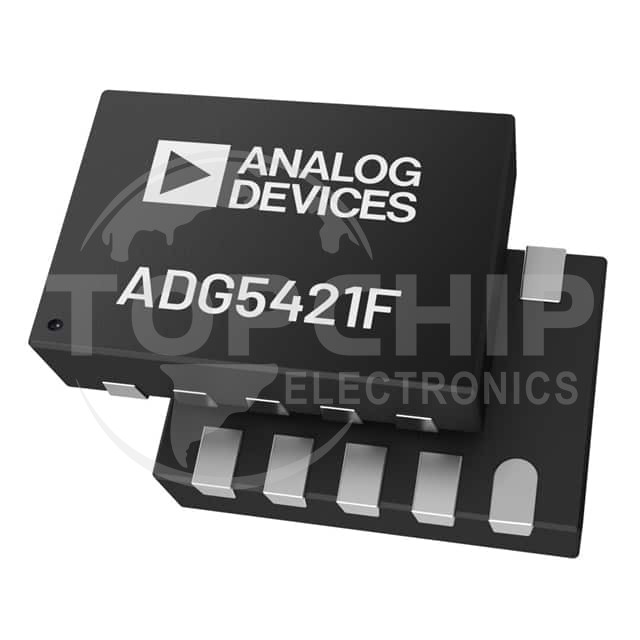

ADG5421FBCPZ-RL7 Specifications

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Active
• Switch Circuit:SPST - NC
• Multiplexer/Demultiplexer Circuit:1:1
• Number of Circuits:2
• On-State Resistance (Max):14Ohm
• Channel-to-Channel Matching (ΔRon):20mOhm
• Voltage - Supply, Single (V+):8V ~ 44V, ±5V ~ 22V
• Voltage - Supply, Dual (V±):8V ~ 44V, ±5V ~ 22V
• Switch Time (Ton, Toff) (Max):15.9µs, 160ns
• -3db Bandwidth:630MHz
• Charge Injection:-150pC
• Channel Capacitance (CS(off), CD(off)):6pF, 5pF
• Current - Leakage (IS(off)) (Max):200pA
• Crosstalk:-78dB @ 1MHz
• Operating Temperature:-40°C ~ 125°C
• Mounting Type:Surface Mount
• Package / Case:10-WFDFN Exposed Pad, CSP
• Supplier Device Package:10-LFCSP (3x2)
