ADGS1208BCPZ-RL7 Specifications

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Active
• Switch Circuit:-
• Multiplexer/Demultiplexer Circuit:8:1
• Number of Circuits:1
• On-State Resistance (Max):200Ohm
• Channel-to-Channel Matching (ΔRon):3.5Ohm
• Voltage - Supply, Single (V+):12V
• Voltage - Supply, Dual (V±):±15V
• Switch Time (Ton, Toff) (Max):110ns, 135ns
• -3db Bandwidth:550MHz
• Charge Injection:0.4pC
• Channel Capacitance (CS(off), CD(off)):1pF, 5pF
• Current - Leakage (IS(off)) (Max):100pA
• Crosstalk:-85dB @ 1MHz
• Operating Temperature:-40°C ~ 125°C
• Mounting Type:Surface Mount

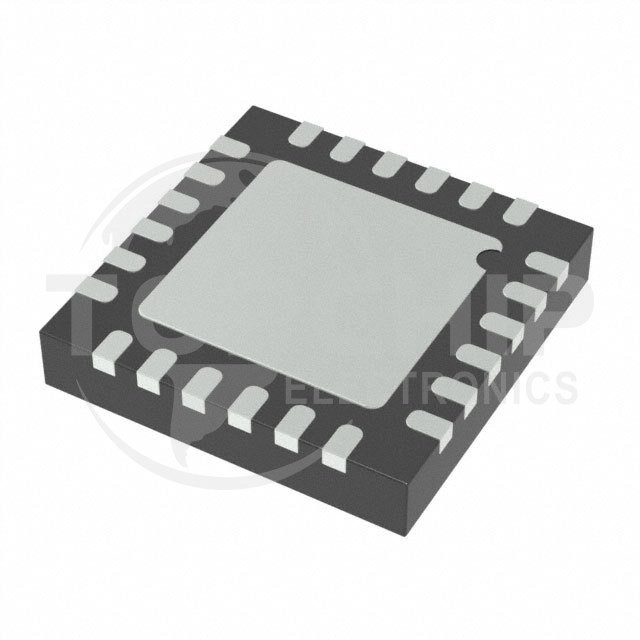

• Package / Case:24-WFQFN Exposed Pad, CSP
• Supplier Device Package:24-LFCSP-WQ (4x4)
