ADGS1612BCPZ-RL7 Specifications

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Active
• Switch Circuit:SPST - NO
• Multiplexer/Demultiplexer Circuit:1:1
• Number of Circuits:4
• On-State Resistance (Max):1Ohm
• Channel-to-Channel Matching (ΔRon):40mOhm
• Voltage - Supply, Single (V+):3.3V ~ 16V
• Voltage - Supply, Dual (V±):±3.3V ~ 8V
• Switch Time (Ton, Toff) (Max):-
• -3db Bandwidth:42MHz
• Charge Injection:140pC
• Channel Capacitance (CS(off), CD(off)):63pF, 63pF
• Current - Leakage (IS(off)) (Max):100pA
• Crosstalk:-110dB @ 1MHz
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount

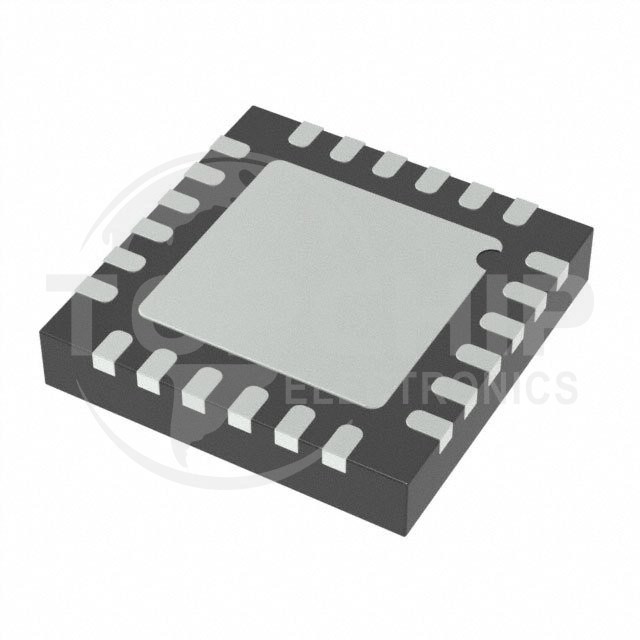

• Package / Case:24-VFQFN Exposed Pad, CSP
• Supplier Device Package:24-LFCSP (4x4)
