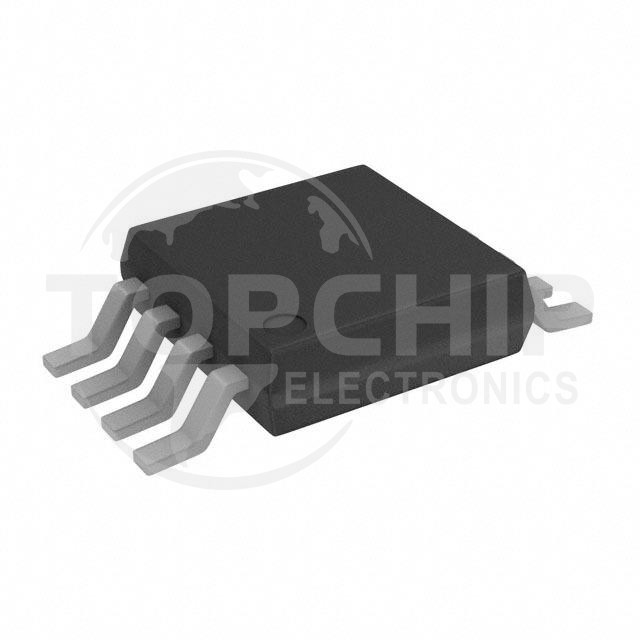

ADG1401BRMZ-REEL7 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SPST - NO
• Multiplexer/Demultiplexer Circuit:1:1
• Number of Circuits:1
• On-State Resistance (Max):1.3Ohm
• Channel-to-Channel Matching (ΔRon):200mOhm
• Voltage - Supply, Single (V+):5V ~ 16.5V
• Voltage - Supply, Dual (V±):±4.5V ~ 16.5V
• Switch Time (Ton, Toff) (Max):150ns, 150ns
• -3db Bandwidth:120MHz
• Charge Injection:-12pC
• Channel Capacitance (CS(off), CD(off)):36pF, 41pF
• Current - Leakage (IS(off)) (Max):400pA
• Crosstalk:-
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount
• Package / Case:8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
• Supplier Device Package:8-MSOP
