ADG5248FBCPZ-RL7 Specifications

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Active
• Switch Circuit:-
• Multiplexer/Demultiplexer Circuit:8:1
• Number of Circuits:1
• On-State Resistance (Max):335Ohm
• Channel-to-Channel Matching (ΔRon):3Ohm
• Voltage - Supply, Single (V+):8V ~ 44V
• Voltage - Supply, Dual (V±):±5V ~ 22V
• Switch Time (Ton, Toff) (Max):245ns, 135ns
• -3db Bandwidth:200MHz
• Charge Injection:-1.2pC
• Channel Capacitance (CS(off), CD(off)):4pF, 13pF
• Current - Leakage (IS(off)) (Max):1nA
• Crosstalk:-75dB @ 1MHz
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount

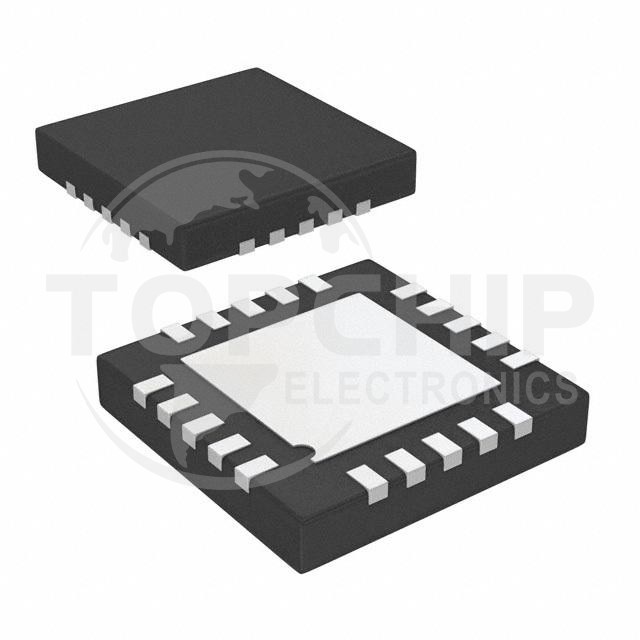

• Package / Case:20-WFQFN Exposed Pad, CSP
• Supplier Device Package:20-LFCSP-WQ (4x4)
