ADG1422BCPZ-REEL7 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SPST - NC
• Multiplexer/Demultiplexer Circuit:1:1
• Number of Circuits:2
• On-State Resistance (Max):2.4Ohm
• Channel-to-Channel Matching (ΔRon):20mOhm
• Voltage - Supply, Single (V+):5V ~ 16.5V
• Voltage - Supply, Dual (V±):±4.5V ~ 16.5V
• Switch Time (Ton, Toff) (Max):145ns, 145ns
• -3db Bandwidth:180MHz
• Charge Injection:-5pC
• Channel Capacitance (CS(off), CD(off)):18pF, 22pF
• Current - Leakage (IS(off)) (Max):500pA
• Crosstalk:-74dB @ 1MHz
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount

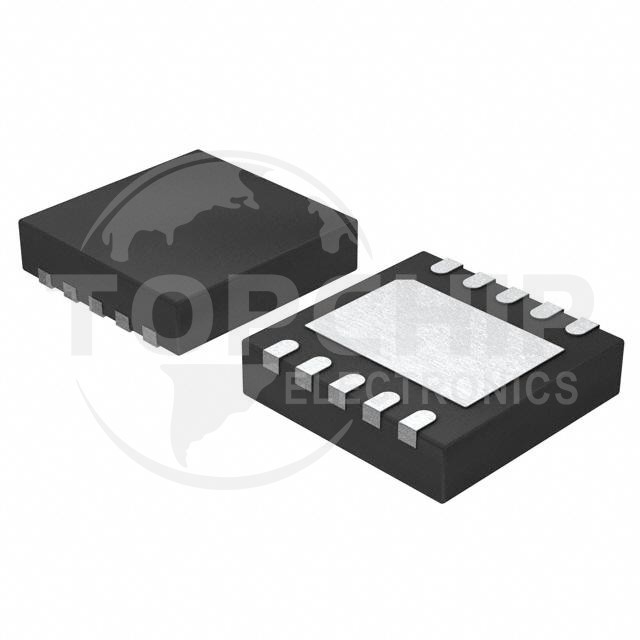

• Package / Case:10-VFDFN Exposed Pad, CSP
• Supplier Device Package:10-LFCSP-WD (3x3)
