ADG417BRZ-REEL Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SPST - NC
• Multiplexer/Demultiplexer Circuit:1:1
• Number of Circuits:1
• On-State Resistance (Max):35Ohm
• Channel-to-Channel Matching (ΔRon):-
• Voltage - Supply, Single (V+):12V
• Voltage - Supply, Dual (V±):±15V
• Switch Time (Ton, Toff) (Max):160ns, 100ns
• -3db Bandwidth:-
• Charge Injection:7pC
• Channel Capacitance (CS(off), CD(off)):6pF, 6pF
• Current - Leakage (IS(off)) (Max):250pA
• Crosstalk:-
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

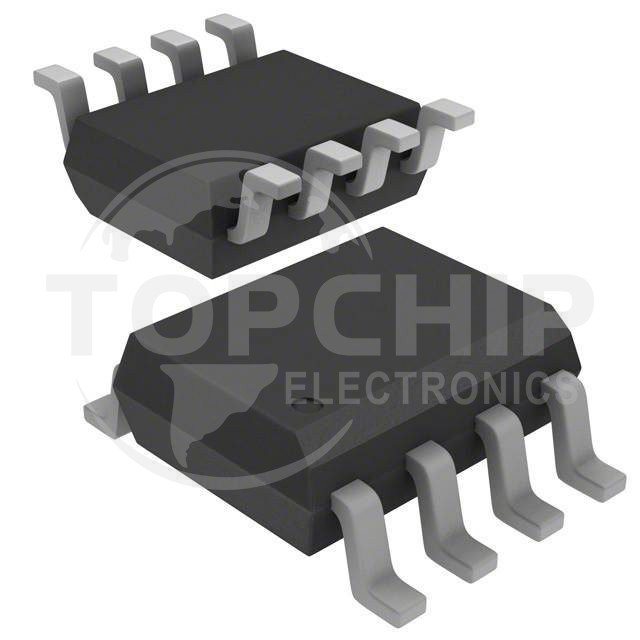

• Package / Case:8-SOIC (0.154", 3.90mm Width)
• Supplier Device Package:8-SOIC
