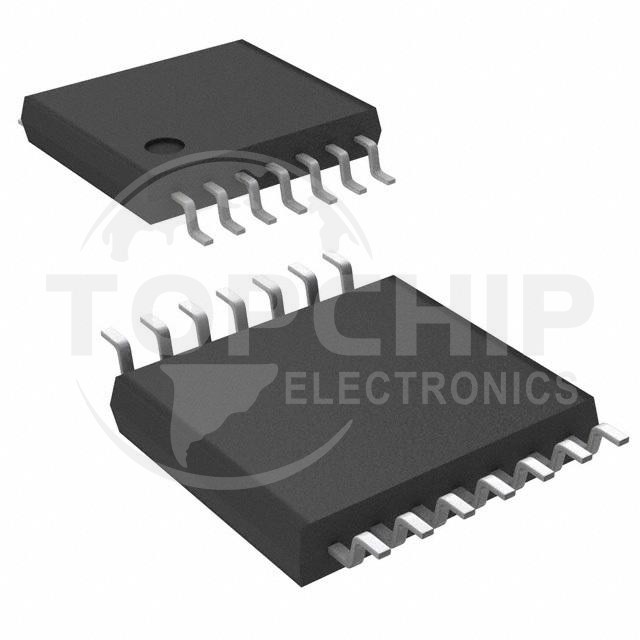

ADG5404FBRUZ Specifications

• Series:-
• Package:Tube
• Part Status:Active
• Switch Circuit:-
• Multiplexer/Demultiplexer Circuit:4:1
• Number of Circuits:1
• On-State Resistance (Max):11.5Ohm
• Channel-to-Channel Matching (ΔRon):650mOhm
• Voltage - Supply, Single (V+):8V ~ 44V
• Voltage - Supply, Dual (V±):±5V ~ 22V
• Switch Time (Ton, Toff) (Max):535ns, 205ns
• -3db Bandwidth:110MHz
• Charge Injection:695pC
• Channel Capacitance (CS(off), CD(off)):11pF, 47pF
• Current - Leakage (IS(off)) (Max):500pA
• Crosstalk:-73dB @ 1MHz
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount
• Package / Case:14-TSSOP (0.173", 4.40mm Width)
• Supplier Device Package:14-TSSOP
