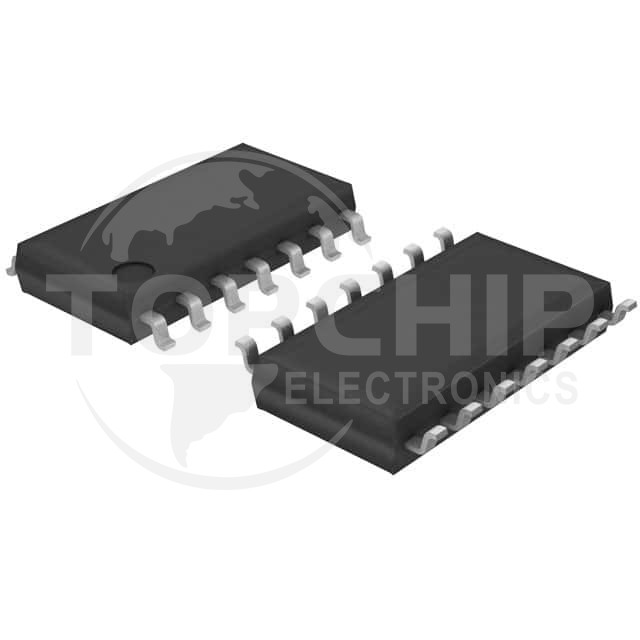

SN74AHC4066NSRG4 Specifications

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Active
• Switch Circuit:SPST - NO
• Multiplexer/Demultiplexer Circuit:1:1
• Number of Circuits:4
• On-State Resistance (Max):75Ohm
• Channel-to-Channel Matching (ΔRon):2Ohm
• Voltage - Supply, Single (V+):2V ~ 5.5V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):12ns, 12ns
• -3db Bandwidth:50MHz
• Charge Injection:-
• Channel Capacitance (CS(off), CD(off)):0.5pF, 5.5pF
• Current - Leakage (IS(off)) (Max):100nA
• Crosstalk:-45dB @ 1MHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount
• Package / Case:14-SOIC (0.209", 5.30mm Width)
• Supplier Device Package:14-SOP
