ADGS5412BCPZ-RL7 Specifications

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Active
• Switch Circuit:SPST - NO
• Multiplexer/Demultiplexer Circuit:1:1
• Number of Circuits:4
• On-State Resistance (Max):10Ohm
• Channel-to-Channel Matching (ΔRon):350mOhm
• Voltage - Supply, Single (V+):9V ~ 40V
• Voltage - Supply, Dual (V±):±9V ~ 22V
• Switch Time (Ton, Toff) (Max):530ns, 230ns
• -3db Bandwidth:160MHz
• Charge Injection:310pC
• Channel Capacitance (CS(off), CD(off)):17pF, 17pF
• Current - Leakage (IS(off)) (Max):250pA
• Crosstalk:-70dB @ 1MHz
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount

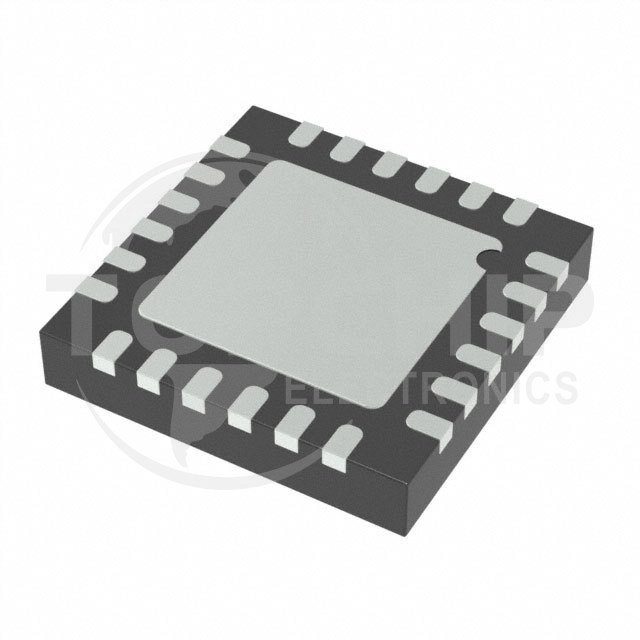

• Package / Case:24-VFQFN Exposed Pad
• Supplier Device Package:24-LFCSP (4x4)
