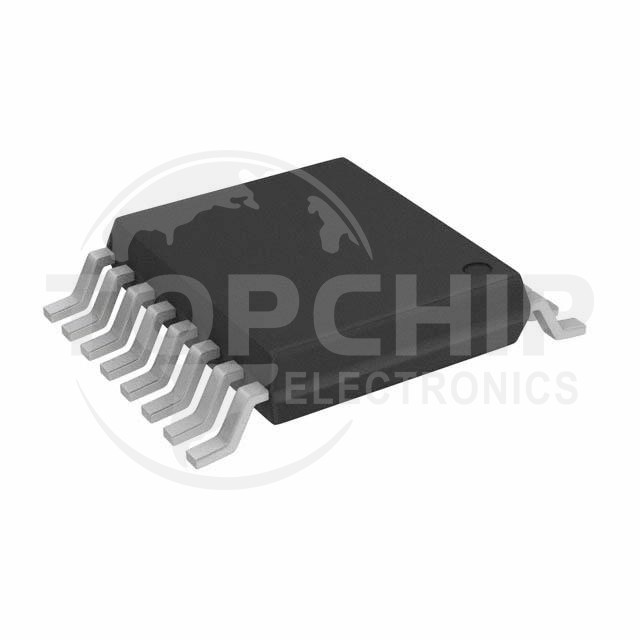

TC4053BFTEL Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Not For New Designs
• Switch Circuit:SPDT
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:3
• On-State Resistance (Max):160Ohm
• Channel-to-Channel Matching (ΔRon):4Ohm
• Voltage - Supply, Single (V+):3V ~ 18V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):-
• -3db Bandwidth:30MHz
• Charge Injection:-
• Channel Capacitance (CS(off), CD(off)):0.2pF, 5pF
• Current - Leakage (IS(off)) (Max):100nA
• Crosstalk:-50dB @ 1.5MHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount
• Package / Case:16-TSSOP (0.173", 4.40mm Width)
• Supplier Device Package:16-TSSOP
