ADG5206BRUZ-RL7 Specifications

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Active
• Switch Circuit:-
• Multiplexer/Demultiplexer Circuit:16:1
• Number of Circuits:1
• On-State Resistance (Max):160Ohm
• Channel-to-Channel Matching (ΔRon):4Ohm
• Voltage - Supply, Single (V+):9V ~ 40V
• Voltage - Supply, Dual (V±):±9V ~ 22V
• Switch Time (Ton, Toff) (Max):230ns, 185ns
• -3db Bandwidth:65MHz
• Charge Injection:0.45pC
• Channel Capacitance (CS(off), CD(off)):3.3pf, 62pF
• Current - Leakage (IS(off)) (Max):100pA
• Crosstalk:-76dB @ 1MHz
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount

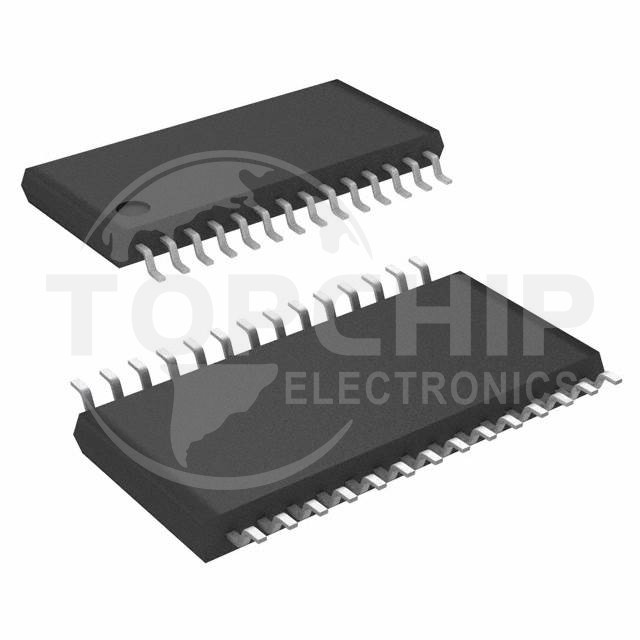

• Package / Case:28-TSSOP (0.173", 4.40mm Width)
• Supplier Device Package:28-TSSOP
