STG3820BJR Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:DPDT
• Multiplexer/Demultiplexer Circuit:2:2
• Number of Circuits:4
• On-State Resistance (Max):5.8Ohm
• Channel-to-Channel Matching (ΔRon):300mOhm
• Voltage - Supply, Single (V+):1.65V ~ 4.3V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):15ns, 13ns
• -3db Bandwidth:800MHz
• Charge Injection:6.4pC
• Channel Capacitance (CS(off), CD(off)):2pF
• Current - Leakage (IS(off)) (Max):20nA
• Crosstalk:-78dB @ 1MHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

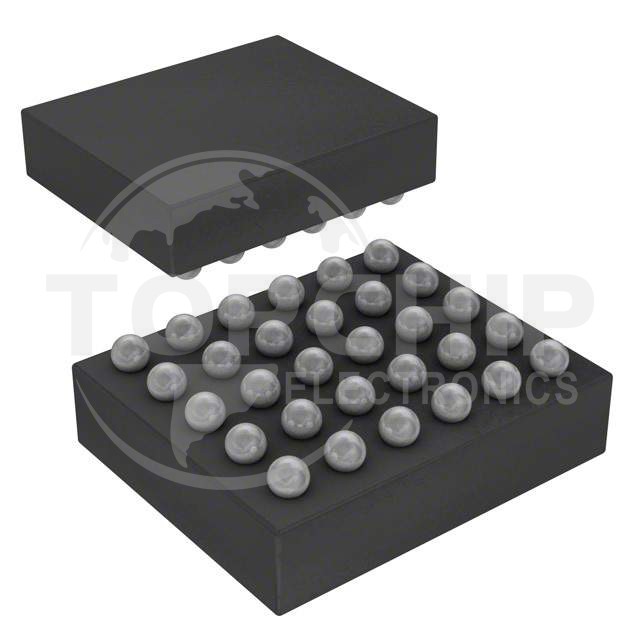

• Package / Case:30-WFBGA, FCBGA
• Supplier Device Package:FlipChip 30
