TMUX1574RSVR Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SPDT
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:4
• On-State Resistance (Max):4.5Ohm
• Channel-to-Channel Matching (ΔRon):70mOhm
• Voltage - Supply, Single (V+):-
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):35µs, 95ns
• -3db Bandwidth:2GHz
• Charge Injection:3.5pC
• Channel Capacitance (CS(off), CD(off)):3.5pF, 3.5pF
• Current - Leakage (IS(off)) (Max):100nA
• Crosstalk:-90dB @ 100kHz
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount

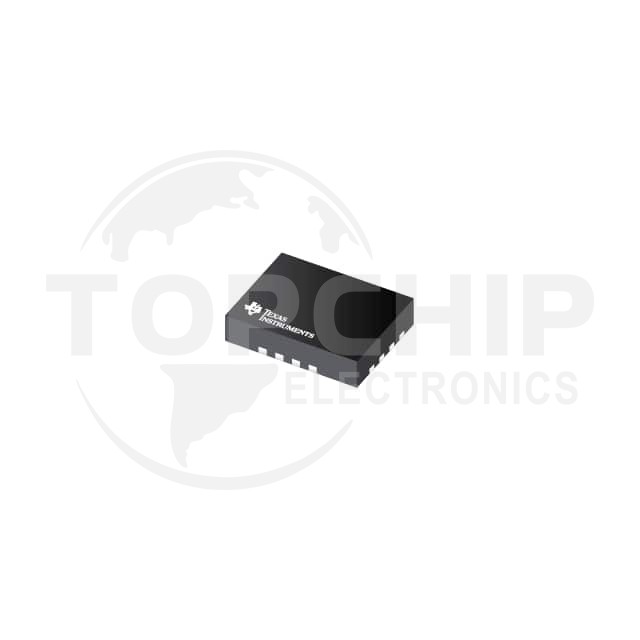

• Package / Case:16-UFQFN
• Supplier Device Package:16-UQFN (2.6x1.8)
