ADG636YRUZ-REEL7 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SPDT
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:2
• On-State Resistance (Max):115Ohm
• Channel-to-Channel Matching (ΔRon):2Ohm
• Voltage - Supply, Single (V+):2.7V ~ 5.5V
• Voltage - Supply, Dual (V±):±2.7V ~ 5.5V
• Switch Time (Ton, Toff) (Max):135ns, 80ns
• -3db Bandwidth:610MHz
• Charge Injection:-1.2pC
• Channel Capacitance (CS(off), CD(off)):5pF, 8pF
• Current - Leakage (IS(off)) (Max):100pA
• Crosstalk:-65dB @ 10MHz
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount

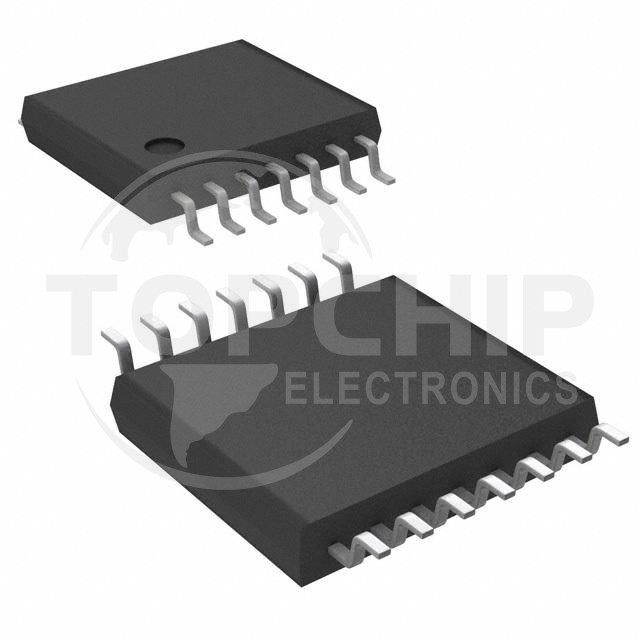

• Package / Case:14-TSSOP (0.173", 4.40mm Width)
• Supplier Device Package:14-TSSOP
