ADG333ABRSZ-REEL Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SPDT
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:4
• On-State Resistance (Max):45Ohm
• Channel-to-Channel Matching (ΔRon):5Ohm
• Voltage - Supply, Single (V+):3V ~ 30V
• Voltage - Supply, Dual (V±):±3V ~ 20V
• Switch Time (Ton, Toff) (Max):90ns, 80ns (Typ)
• -3db Bandwidth:-
• Charge Injection:2pC
• Channel Capacitance (CS(off), CD(off)):7pF
• Current - Leakage (IS(off)) (Max):250pA
• Crosstalk:-85dB @ 1MHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

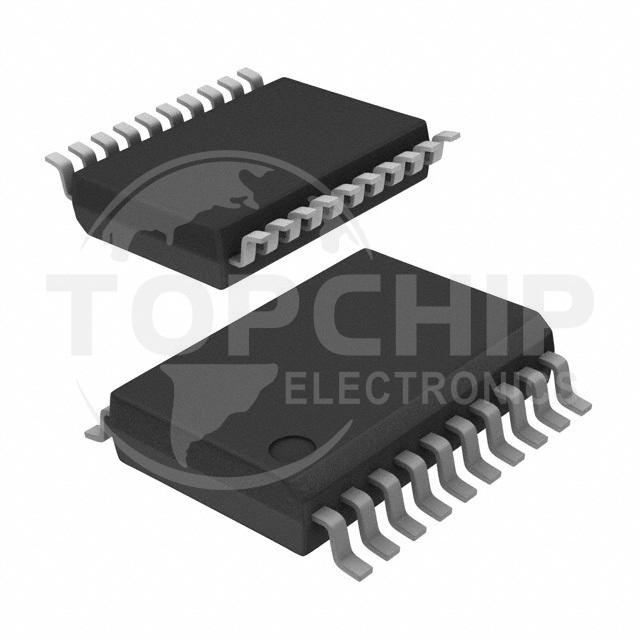

• Package / Case:20-SSOP (0.209", 5.30mm Width)
• Supplier Device Package:20-SSOP
