TS3A27518ETRTWRQ1 Specifications

• Series:Automotive, AEC-Q100
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SPDT
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:6
• On-State Resistance (Max):6.2Ohm
• Channel-to-Channel Matching (ΔRon):300mOhm
• Voltage - Supply, Single (V+):1.65V ~ 3.6V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):59ns, 60.6ns
• -3db Bandwidth:240MHz
• Charge Injection:0.81pC
• Channel Capacitance (CS(off), CD(off)):13pF, 8.5pF
• Current - Leakage (IS(off)) (Max):1µA
• Crosstalk:-62dB @ 10MHz
• Operating Temperature:-40°C ~ 105°C (TA)
• Mounting Type:Surface Mount

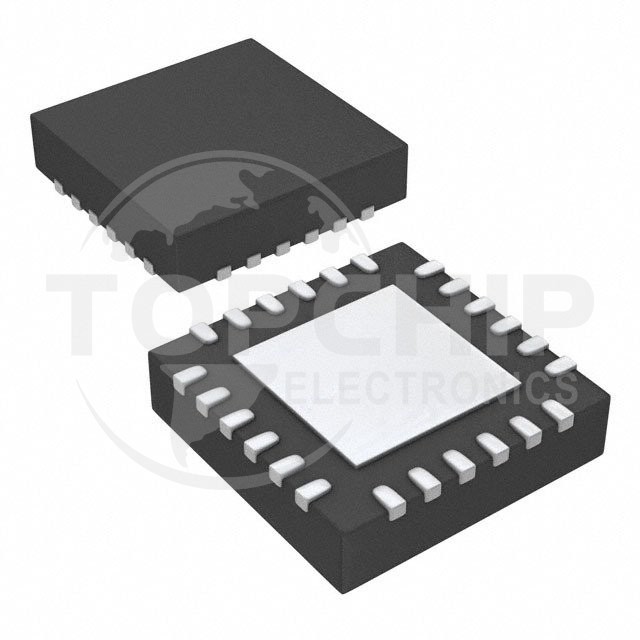

• Package / Case:24-WQFN Exposed Pad
• Supplier Device Package:24-WQFN (4x4)
