TS3A5018PWG4 Specifications

• Series:-
• Package:Tube
• Part Status:Active
• Switch Circuit:SPDT
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:4
• On-State Resistance (Max):10Ohm
• Channel-to-Channel Matching (ΔRon):300mOhm
• Voltage - Supply, Single (V+):1.65V ~ 3.6V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):8ns, 6.5ns
• -3db Bandwidth:300MHz
• Charge Injection:2pC
• Channel Capacitance (CS(off), CD(off)):4.5pF, 9pF
• Current - Leakage (IS(off)) (Max):100nA
• Crosstalk:-48dB @ 10MHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

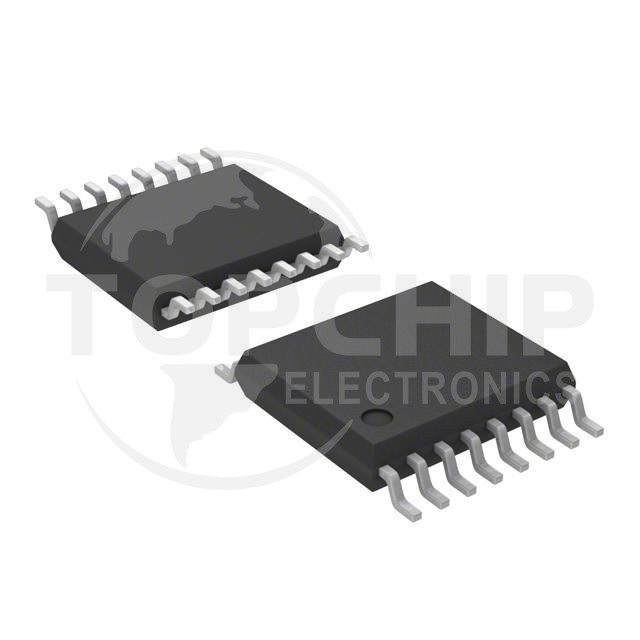

• Package / Case:16-TSSOP (0.173", 4.40mm Width)
• Supplier Device Package:16-TSSOP
