ADG726BCPZ-REEL Specifications

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Active
• Switch Circuit:-
• Multiplexer/Demultiplexer Circuit:16:1
• Number of Circuits:2
• On-State Resistance (Max):5.5Ohm
• Channel-to-Channel Matching (ΔRon):-
• Voltage - Supply, Single (V+):1.8V ~ 5.5V
• Voltage - Supply, Dual (V±):±2.5V
• Switch Time (Ton, Toff) (Max):-
• -3db Bandwidth:35MHz
• Charge Injection:1pC
• Channel Capacitance (CS(off), CD(off)):13pF, 130pF
• Current - Leakage (IS(off)) (Max):250pA
• Crosstalk:-72dB @ 1MHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

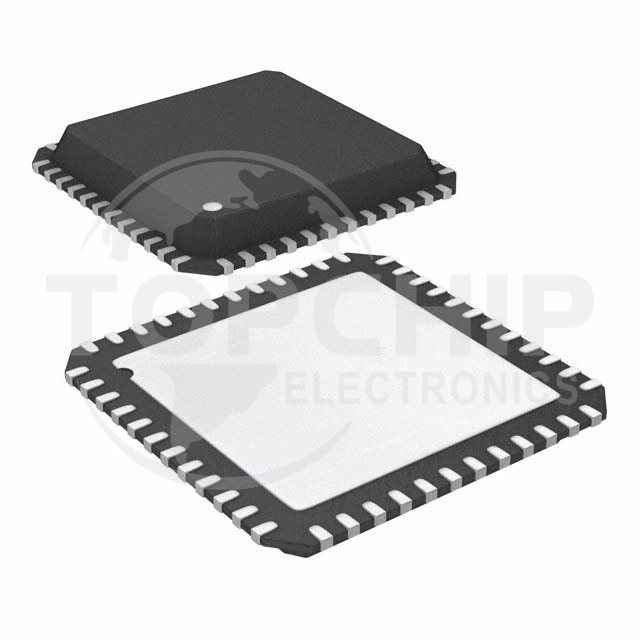

• Package / Case:48-VFQFN Exposed Pad, CSP
• Supplier Device Package:48-LFCSP (7x7)
