ADGS1408BCPZ-RL7 Specifications

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Active
• Switch Circuit:-
• Multiplexer/Demultiplexer Circuit:8:1
• Number of Circuits:1
• On-State Resistance (Max):4.7Ohm
• Channel-to-Channel Matching (ΔRon):200mOhm
• Voltage - Supply, Single (V+):12V
• Voltage - Supply, Dual (V±):±15V
• Switch Time (Ton, Toff) (Max):165ns, 155ns
• -3db Bandwidth:60MHz
• Charge Injection:50pC
• Channel Capacitance (CS(off), CD(off)):14pF, 80pF
• Current - Leakage (IS(off)) (Max):200pA
• Crosstalk:-70dB @ 1MHz
• Operating Temperature:-40°C ~ 125°C
• Mounting Type:Surface Mount

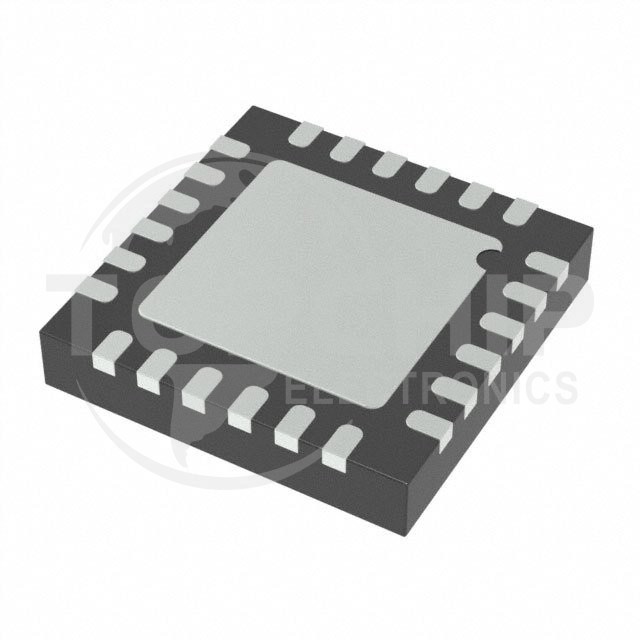

• Package / Case:24-VFQFN Exposed Pad, CSP
• Supplier Device Package:24-LFCSP (4x4)
