ADG1213YCPZ-REEL7 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SPST - NO/NC
• Multiplexer/Demultiplexer Circuit:1:1
• Number of Circuits:4
• On-State Resistance (Max):190Ohm
• Channel-to-Channel Matching (ΔRon):2.5Ohm
• Voltage - Supply, Single (V+):5V ~ 16.5V
• Voltage - Supply, Dual (V±):±4.5V ~ 16.5V
• Switch Time (Ton, Toff) (Max):130ns, 115ns
• -3db Bandwidth:1GHz
• Charge Injection:-0.3pC
• Channel Capacitance (CS(off), CD(off)):1.1pF, 1.2pF
• Current - Leakage (IS(off)) (Max):100pA
• Crosstalk:-90dB @ 1MHz
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount

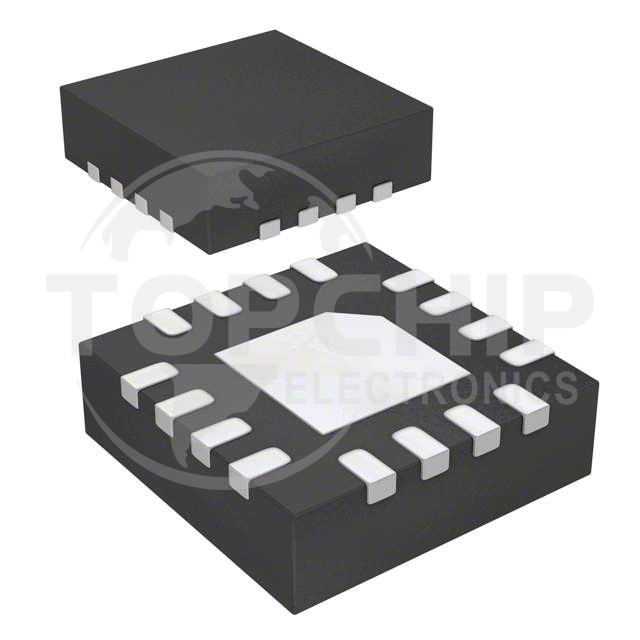

• Package / Case:16-WFQFN Exposed Pad, CSP
• Supplier Device Package:16-LFCSP-WQ (3x3)
