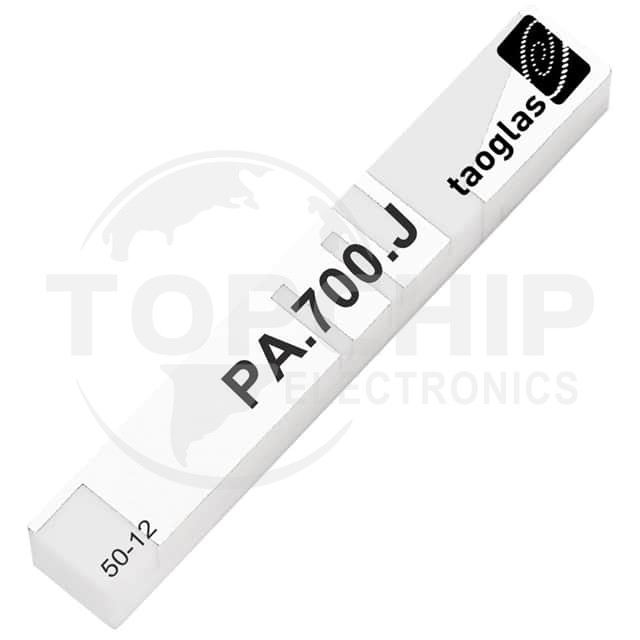

PA.700.J Specifications

• Series:Viking
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• RF Family/Standard:Cellular
• Frequency Group:Wide Band
• Frequency (Center/Band):800MHz, 900MHz, 1.5GHz, 1.7GHz, 2.1GHz, 2.5GHz
• Frequency Range:698MHz ~ 800MHz, 824MHz ~ 960MHz, 1.41GHz ~ 1.52GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.7GHz
• Antenna Type:Chip
• Number of Bands:6
• VSWR:3.5
• Return Loss:-5dB, -14dB, -7dB, -7dB, -7.5dB
• Gain:-3.6dBi, -0.5dBi, -1dBi, 0.5dBi, 2.7dBi
• Power - Max:5 W
• Features:-
• Termination:Solder
• Ingress Protection:-
• Mounting Type:Surface Mount
• Height (Max):0.197" (5.00mm)
• Applications:CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA
