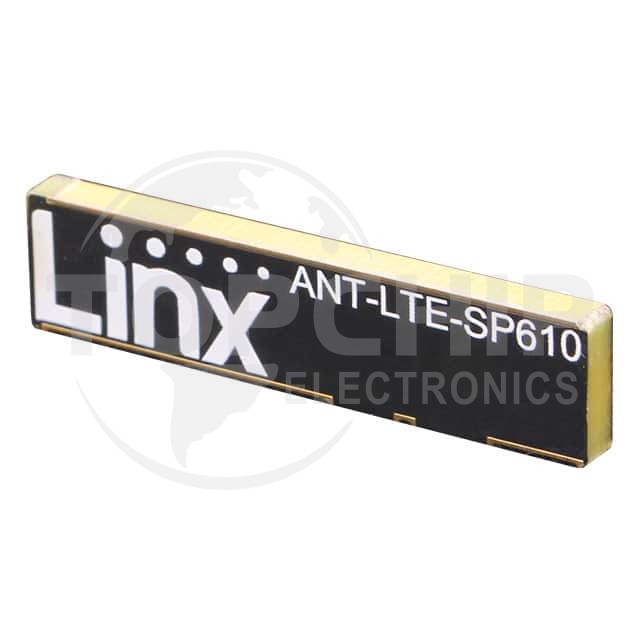

ANT-LTE-SP610-T Specifications

• Series:Splatch®
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• RF Family/Standard:Cellular
• Frequency Group:Wide Band
• Frequency (Center/Band):700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz
• Frequency Range:698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.49GHz ~ 2.69GHz
• Antenna Type:Chip
• Number of Bands:4
• VSWR:3.4, 3.1, 3.0, 5.0
• Return Loss:-5.3dB, -5.8dB, -6.0dB, -3.5dB
• Gain:5.1dBi, 5.3dBi, 4.9dBi, 2.7dBi
• Power - Max:10 W
• Features:-
• Termination:Solder
• Ingress Protection:-
• Mounting Type:Surface Mount
• Height (Max):0.110" (2.80mm)
• Applications:CAT-M1, Cellular, GSM, LTE, LTE-M, LPWA, NB-IOT, UMTS, 4G
