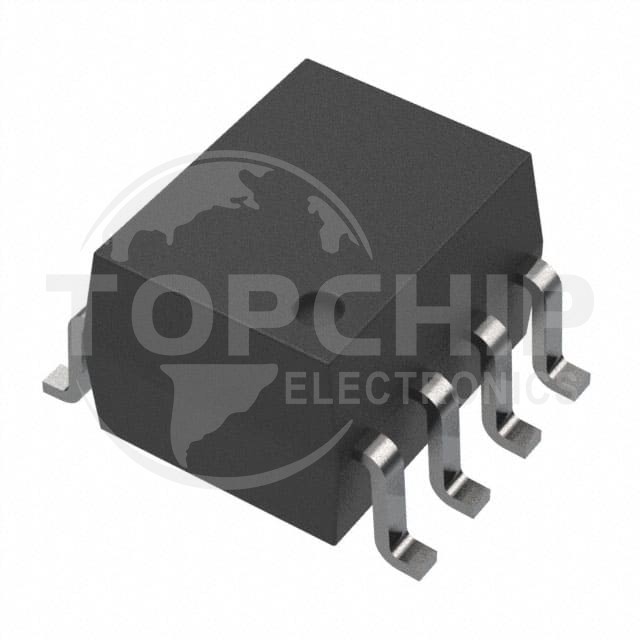

ELD207(TB)-V Specifications

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Active
• Number of Channels:2
• Voltage - Isolation:3750Vrms
• Current Transfer Ratio (Min):100% @ 10mA
• Current Transfer Ratio (Max):200% @ 10mA
• Turn On / Turn Off Time (Typ):5µs, 4µs
• Rise / Fall Time (Typ):1.6µs, 2.2µs
• Input Type:DC
• Output Type:Transistor
• Voltage - Output (Max):80V
• Current - Output / Channel:-
• Voltage - Forward (Vf) (Typ):1.2V
• Current - DC Forward (If) (Max):60 mA
• Vce Saturation (Max):400mV
• Operating Temperature:-55°C ~ 110°C
• Mounting Type:Surface Mount
• Package / Case:8-SOIC (0.154", 3.90mm Width)
• Supplier Device Package:8-SOP
