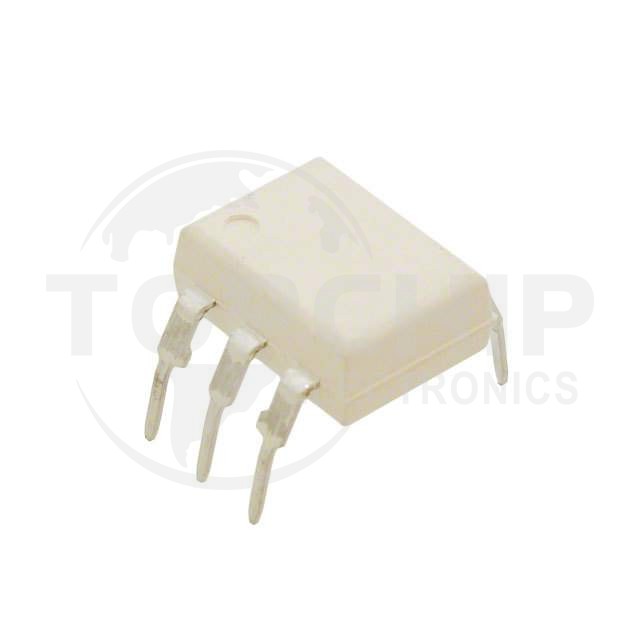

4N31M Specifications

• Series:-
• Package:Tube
• Part Status:Active
• Number of Channels:1
• Voltage - Isolation:5000Vrms
• Current Transfer Ratio (Min):50% @ 10mA
• Current Transfer Ratio (Max):-
• Turn On / Turn Off Time (Typ):5µs, 40µs (Max)
• Rise / Fall Time (Typ):-
• Input Type:DC
• Output Type:Darlington with Base
• Voltage - Output (Max):55V
• Current - Output / Channel:-
• Voltage - Forward (Vf) (Typ):1.2V
• Current - DC Forward (If) (Max):60 mA
• Vce Saturation (Max):1.2V
• Operating Temperature:-55°C ~ 100°C
• Mounting Type:Through Hole
• Package / Case:6-DIP (0.400", 10.16mm)
• Supplier Device Package:6-DIP
