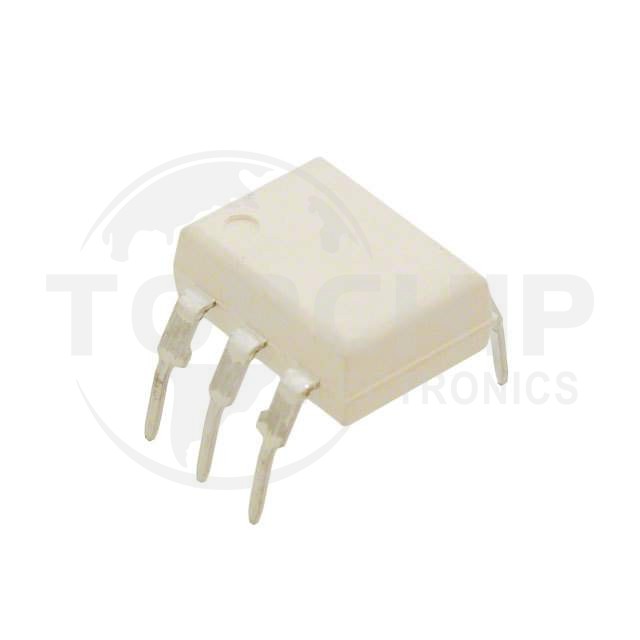

EL3022M Specifications

• Series:-
• Package:Tube
• Part Status:Active
• Output Type:Triac
• Zero Crossing Circuit:No
• Number of Channels:1
• Voltage - Isolation:5000Vrms
• Voltage - Off State:400 V
• Static dV/dt (Min):100V/µs (Typ)
• Current - LED Trigger (Ift) (Max):10mA
• Current - On State (It (RMS)) (Max):100 mA
• Current - Hold (Ih):250µA (Typ)
• Turn On Time:-
• Voltage - Forward (Vf) (Typ):1.18V
• Current - DC Forward (If) (Max):60 mA
• Operating Temperature:-55°C ~ 100°C
• Mounting Type:Through Hole
• Package / Case:6-DIP (0.400", 10.16mm)
• Supplier Device Package:6-DIP
• Approval Agency:CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL
