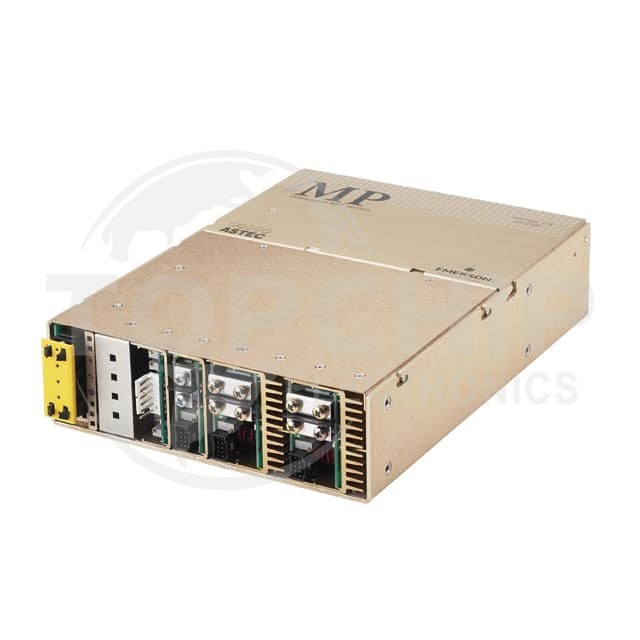

IMP8-3F0-2N0-03-A Specifications

• Series:iMP® (1200W)
• Package:Bulk
• Part Status:Active
• Type:Enclosed
• Number of Outputs:2
• Voltage - Input:85 ~ 264 VAC, 120 ~ 300 VDC
• Voltage - Output 1:5.2V
• Voltage - Output 2:15V
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):144A, 20A
• Power (Watts):1049W
• Applications:ITE (Commercial), Medical
• Voltage - Isolation:2 kV
• Efficiency:85%
• Operating Temperature:-40°C ~ 70°C (With Derating)
• Features:Adjustable Output, I²C Interface, PFC, PMBus™, Remote On/Off, Remote Sense, Universal Input
• Mounting Type:Chassis Mount
• Size / Dimension:10.00" L x 7.00" W x 2.50" H (254.0mm x 177.8mm x 63.5mm)
• Approval Agency:CB, CE, CSA, UL
• Standard Number:-
