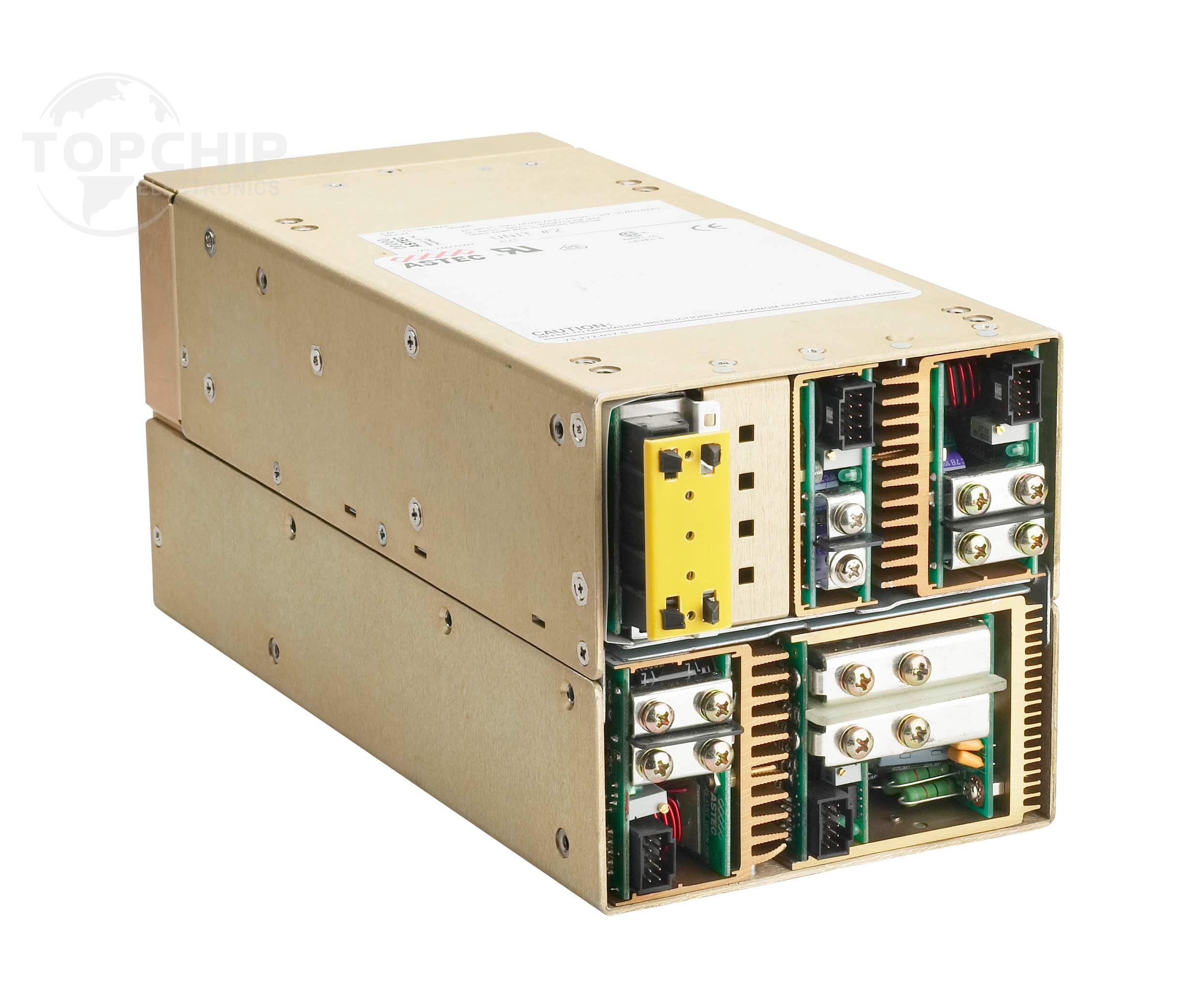

IVS1-2E0-1A0-1F0-1L0-1L0-1Q0-1Q0-00-A Specifications

• Series:iVS™ 1 (3210W)
• Package:Bulk
• Part Status:Active
• Type:Enclosed
• Number of Outputs:7
• Voltage - Input:90 ~ 264 VAC, 120 ~ 300 VDC
• Voltage - Output 1:5V
• Voltage - Output 2:2V
• Voltage - Output 3:5.2V
• Voltage - Output 4:12V
• Current - Output (Max):60A, 35A, 35A, 17A, 17A, 8.5A
• Power (Watts):1368W
• Applications:ITE (Commercial), Medical
• Voltage - Isolation:-
• Efficiency:85%
• Operating Temperature:-40°C ~ 70°C (With Derating)
• Features:Adjustable Output, I²C Interface, PFC, PMBus™, Remote On/Off, Remote Sense, Standby Output, Universal Input
• Mounting Type:Chassis Mount
• Size / Dimension:11.00" L x 5.00" W x 5.00" H (279.4mm x 127.0mm x 127.0mm)
• Approval Agency:CB, CE, CSA, UL
• Standard Number:60601-1; 60950-1
