1SMB15CAT3

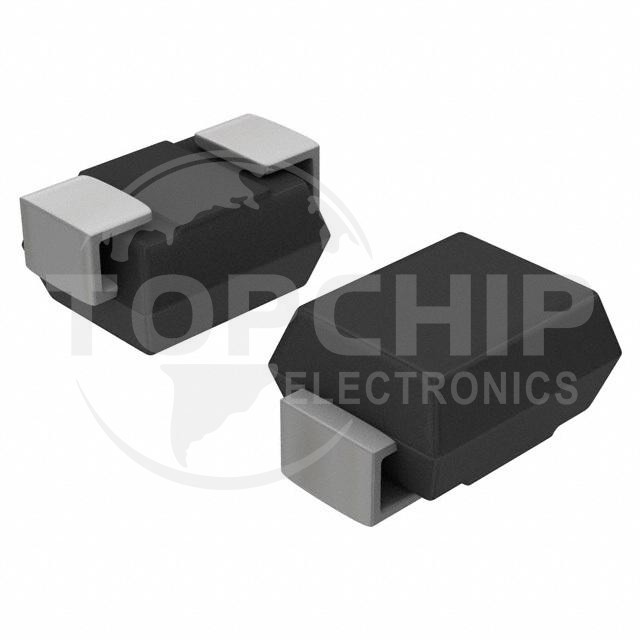

Image is for reference, please contact us to get the real picture

Manufacturer Part
1SMB15CAT3
Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
TVS DIODE 15V 24.4V SMB
Category
Circuit Protection Devices
Family
TVS - Diodes
Series
-
In Stock
0
Datasheets
-

1SMB15CAT3 Specifications

  • Series:-
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Obsolete
  • Type:Zener
  • Unidirectional Channels:-
  • Bidirectional Channels:1
  • Voltage - Reverse Standoff (Typ):15V
  • Voltage - Breakdown (Min):16.7V
  • Voltage - Clamping (Max) @ Ipp:24.4V
  • Current - Peak Pulse (10/1000µs):24A
  • Power - Peak Pulse:600W
  • Power Line Protection:No
  • Applications:General Purpose
  • Capacitance @ Frequency:555pF @ 1MHz
  • Operating Temperature:-65°C ~ 150°C (TJ)
  • Mounting Type:Surface Mount
  • Package / Case:DO-214AA, SMB
  • Supplier Device Package:SMB
