SWK12F315

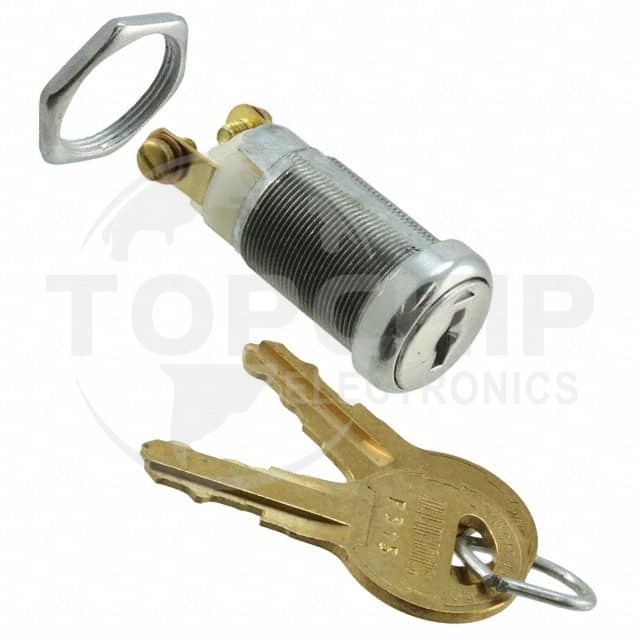

Image is for reference, please contact us to get the real picture

Manufacturer Part
SWK12F315
Manufacturer
TE Connectivity ALCOSWITCH Switches
Description
SWITCH KEYLOCK 2POS SPST 5A 115V
Category
Switches
Family
Keylock Switches
Series
-
In Stock
0
Datasheets
-

SWK12F315 Specifications

  • Series:SWK12
  • Package:Bulk
  • Part Status:Obsolete
  • Circuit:SPST
  • Number of Positions:2
  • Switch Function:On-Off
  • Contact Timing:Non-Shorting (BBM)
  • Current Rating (Amps):5A (AC), 15A (DC)
  • Voltage Rating - AC:115 V
  • Voltage Rating - DC:24 V
  • Actuator Type:Flat Key
  • Key Removable Positions:All
  • Angle of Throw:90°
  • Contact Material:Silver (Ag)
  • Contact Finish:-
  • Mounting Type:Panel Mount
  • Termination Style:Screw Terminal
  • Panel Cutout Dimensions:Circular - 19.20mm Dia
  • Features:-
  • Operating Temperature:-30°C ~ 85°C
