HS13X

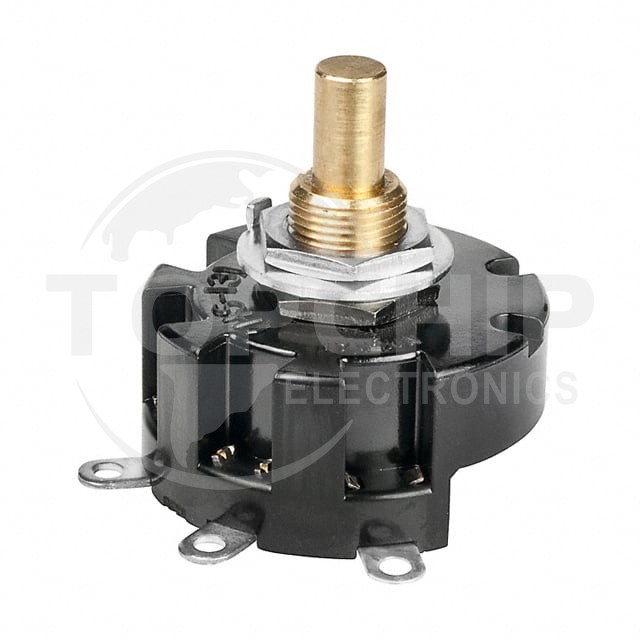

Image is for reference, please contact us to get the real picture

Manufacturer Part
HS13X
Manufacturer
NKK Switches
Description
SWITCH ROTARY 2POS 6A 125V
Category
Switches
Family
Rotary Switches
Series
-
In Stock
0
Datasheets
-

HS13X Specifications

  • Series:HS
  • Package:Box
  • Part Status:Obsolete
  • Number of Positions:2
  • Index Stops:Fixed
  • Number of Decks:1
  • Number of Poles per Deck:1
  • Circuit per Deck:SPDT
  • Contact Timing:Non-Shorting (BBM)
  • Current Rating (Amps):6A (AC), 5A (DC)
  • Voltage Rating - AC:125 V
  • Voltage Rating - DC:30 V
  • Actuator Type:Round (6mm Dia)
  • Actuator Length:10.00mm
  • Angle of Throw:45°
  • Contact Material:Phosphor Bronze
  • Contact Finish:-
  • Mounting Type:Panel Mount
  • Termination Style:Solder Lug
  • Features:-
  • Depth Behind Panel:20.00mm
