TS3N

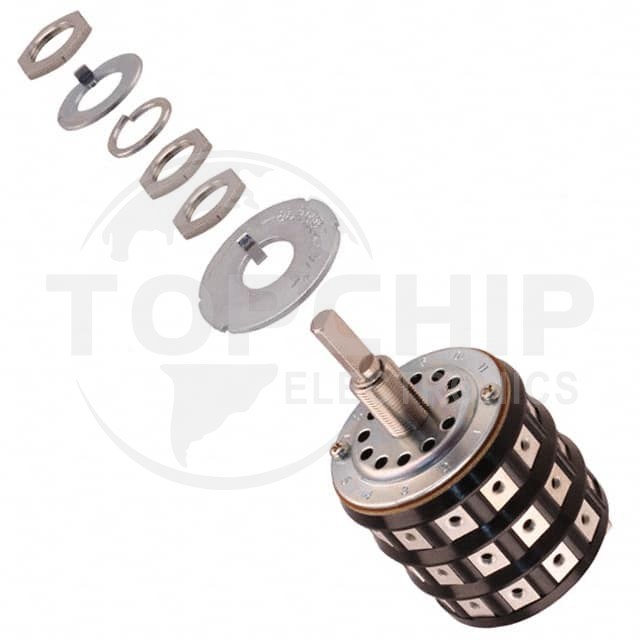

Image is for reference, please contact us to get the real picture

Manufacturer Part
TS3N
Manufacturer
NKK Switches
Description
SWITCH ROTARY 2-11POS 6A 125V
Category
Switches
Family
Rotary Switches
Series
-
In Stock
0
Datasheets
-

TS3N Specifications

  • Series:TS
  • Package:Box
  • Part Status:Obsolete
  • Number of Positions:2 ~ 11
  • Index Stops:Adjustable
  • Number of Decks:3
  • Number of Poles per Deck:1
  • Circuit per Deck:SP11T
  • Contact Timing:Non-Shorting (BBM)
  • Current Rating (Amps):6A (AC)
  • Voltage Rating - AC:125 V
  • Voltage Rating - DC:-
  • Actuator Type:Flatted (6mm Dia)
  • Actuator Length:15.60mm
  • Angle of Throw:30°
  • Contact Material:Phosphor Bronze
  • Contact Finish:-
  • Mounting Type:Panel Mount
  • Termination Style:Screw Terminal
  • Features:-
  • Depth Behind Panel:46.00mm
