AON6370_001 Specifications

• Series:aMOS™
• Package:Tape & Reel (TR)
• Part Status:Obsolete
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):30 V
• Current - Continuous Drain (Id) @ 25°C:23A (Ta), 47A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:7.2mOhm @ 20A, 10V
• Vgs(th) (Max) @ Id:2.2V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:13 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:840 pF @ 15 V
• FET Feature:-
• Power Dissipation (Max):6.2W (Ta), 26W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount

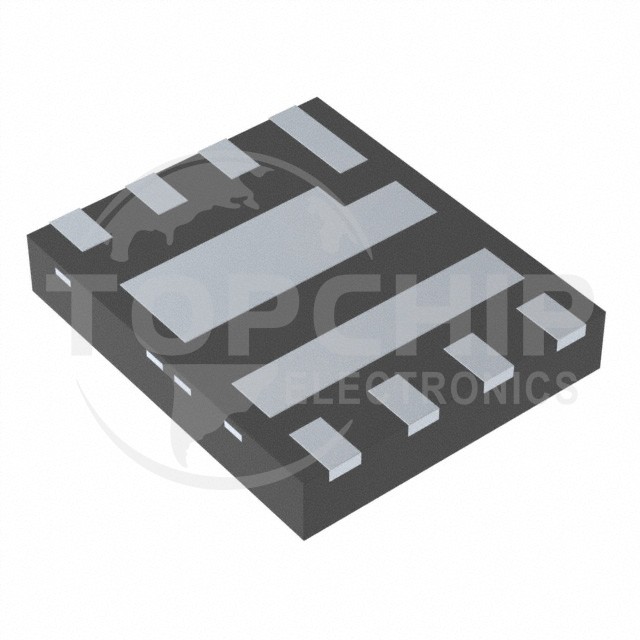

• Supplier Device Package:8-DFN (5x6)
• Package / Case:8-VDFN Exposed Pad
