PSMN011-30YL,115 Specifications

• Series:TrenchMOS™
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Obsolete
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):30 V
• Current - Continuous Drain (Id) @ 25°C:51A (Tj)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:10.7mOhm @ 15A, 10V
• Vgs(th) (Max) @ Id:2.15V @ 1mA
• Gate Charge (Qg) (Max) @ Vgs:14.8 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:726 pF @ 15 V
• FET Feature:-
• Power Dissipation (Max):49W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Surface Mount

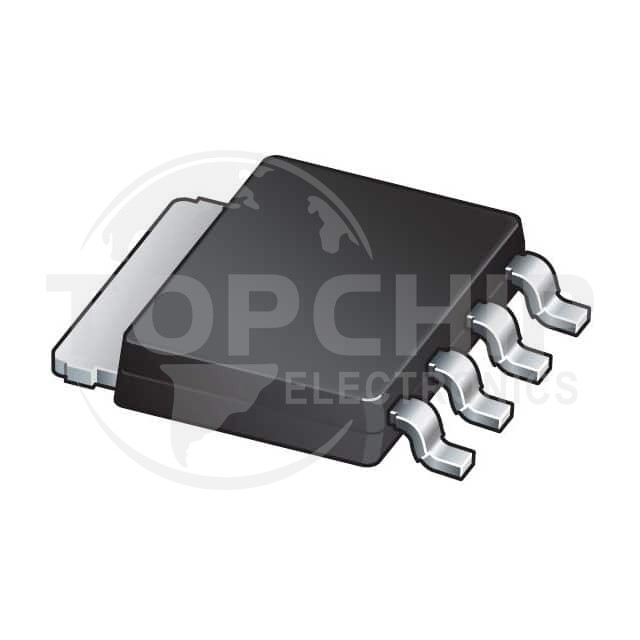

• Supplier Device Package:LFPAK56, Power-SO8
• Package / Case:SC-100, SOT-669
