PH3855L,115 Specifications

• Series:TrenchMOS™
• Package:Tape & Reel (TR)
• Part Status:Obsolete
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):55 V
• Current - Continuous Drain (Id) @ 25°C:24A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:36mOhm @ 15A, 10V
• Vgs(th) (Max) @ Id:2V @ 1mA
• Gate Charge (Qg) (Max) @ Vgs:11.7 nC @ 5 V
• Vgs (Max):±15V
• Input Capacitance (Ciss) (Max) @ Vds:765 pF @ 25 V
• FET Feature:-
• Power Dissipation (Max):50W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Surface Mount

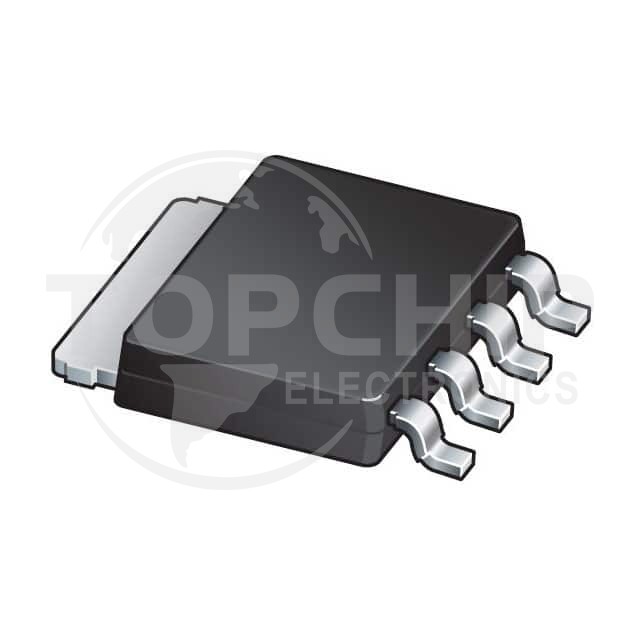

• Supplier Device Package:LFPAK56, Power-SO8
• Package / Case:SC-100, SOT-669
